Wiper and Washer System - Exploded View

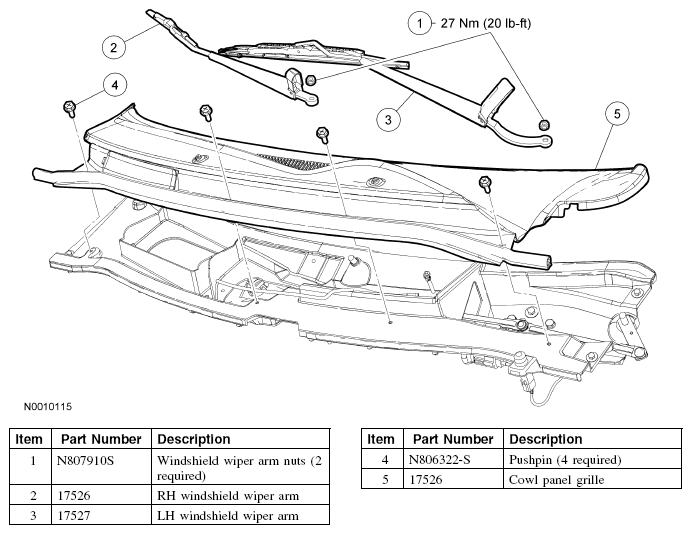

Fig 1: Exploded View Of Wiper Arms And Cowl Panel Grille With Torque Specification

Courtesy of FORD MOTOR CO.

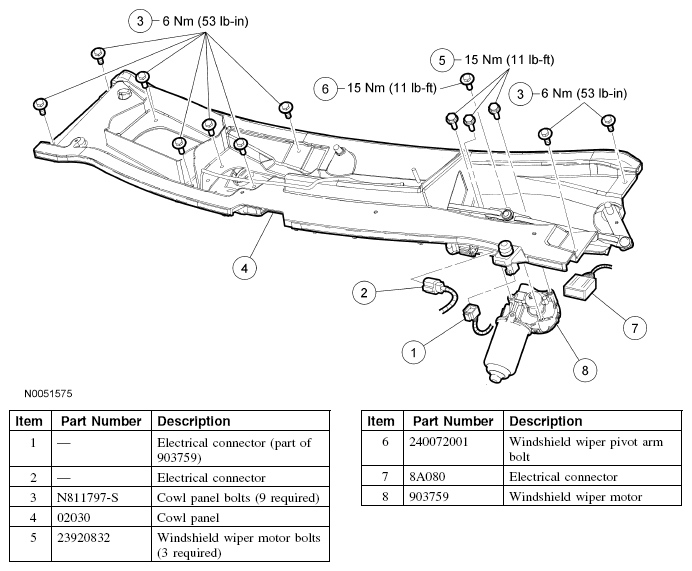

Fig 2: Exploded View Of Cowl Panel And Windshield Wiper Motor With Torque Specification's

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
