Home >> Ford >> 2006 >> Freestar Base >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior Body Panels >> Body Panel System - Body Closures >> Removal And Installation >> Power Liftgate Module >> Notes

Power Liftgate Module: Notes

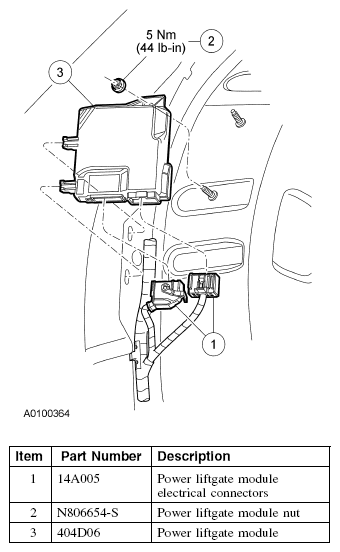

Fig 1: Power Liftgate Module Replacement Components With Torque Specifications

G04663023

Courtesy of FORD MOTOR CO.
