Home >> Ford >> 2006 >> Focus ZX4 ST >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Safety Belt System >> Removal And Installation >> Safety Belt Buckle - Rear >> Notes

Safety Belt Buckle - Rear: Notes

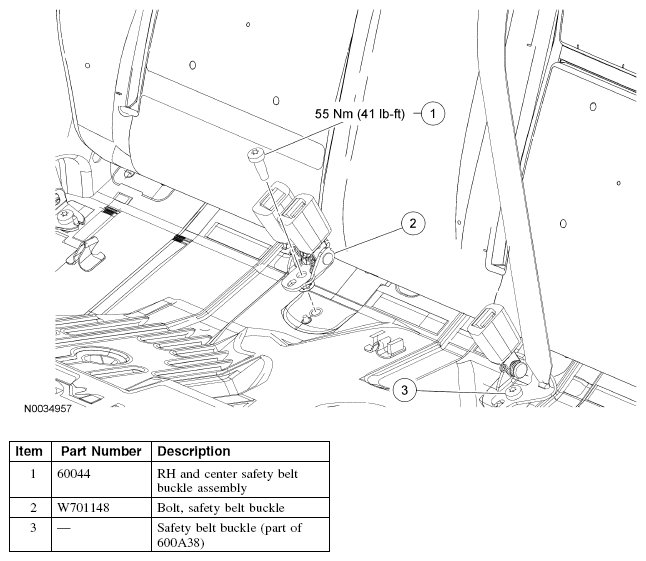

Fig 1: Rear Safety Belt Buckle With Torque Specifications

G04654790

Courtesy of FORD MOTOR CO.
