Secondary Air Injection System (AIR) Components - Exploded View

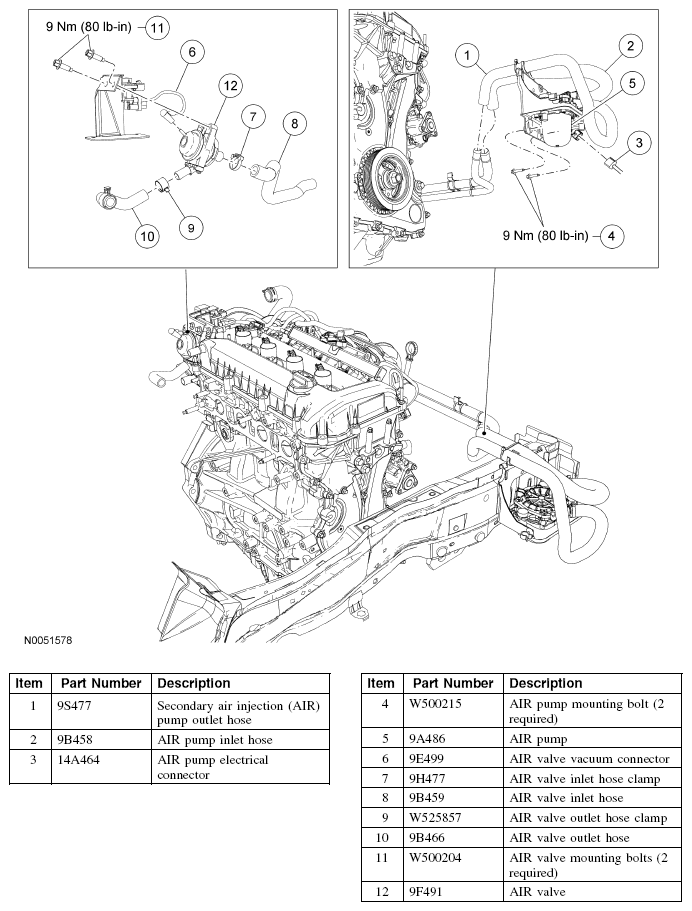

Fig 1: Secondary Air Injection System (AIR) Components - Exploded View
G04652564Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure in this article.
