Subframe - Front: Notes
SPECIAL TOOL(S)
|
|
Remover, Tie-Rod End
211-001 (TOOL-3290-D) |
|
|
Alignment Pins, Subframe
502-002 (T94P-2100-AH) |
|
|
Installer Set, Teflon® Seal
211-D027 (D90P-3S17-A) or equivalent |

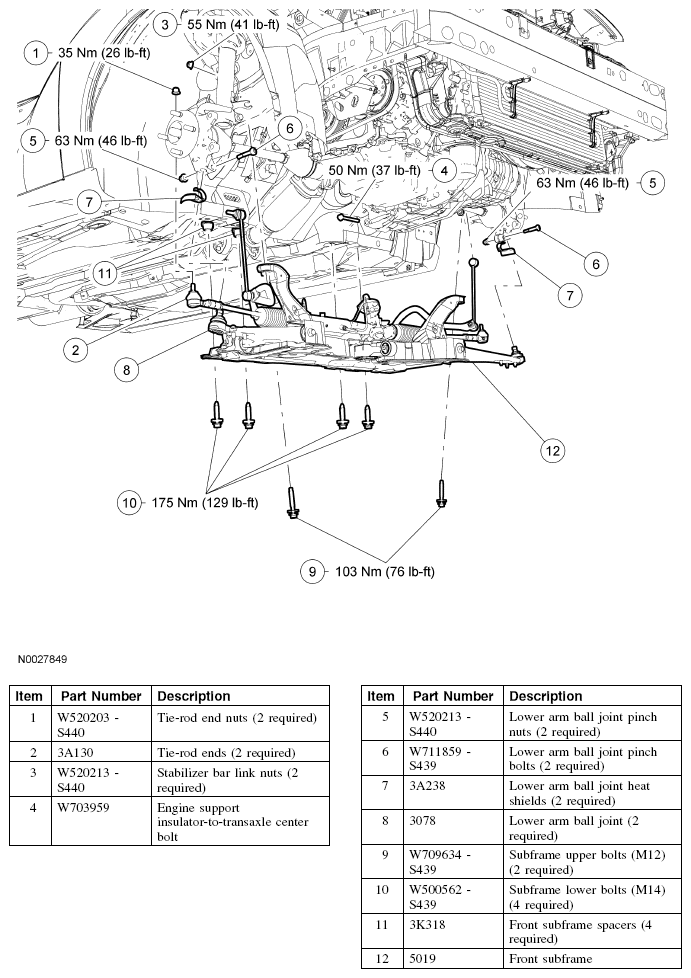

NOTE:
The front bumper cover and the RH/LH brake assemblies have been removed for clarity.
Courtesy of FORD MOTOR CO.
