Home >> Ford >> 2006 >> Focus ZX3 S >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Safety Belt System >> Removal And Installation >> Safety Belt Shoulder Height Adjuster >> Notes

Safety Belt Shoulder Height Adjuster: Notes

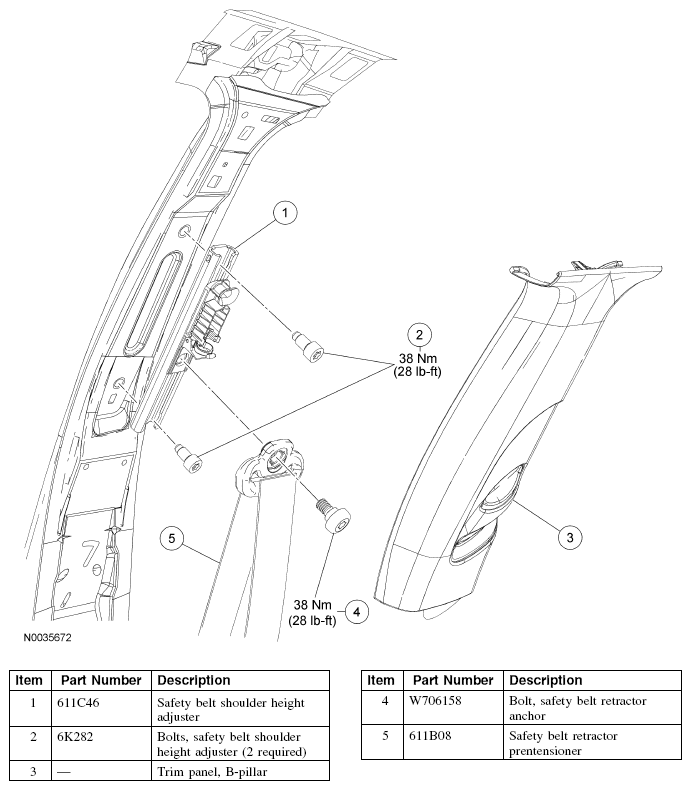

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components With Torque Specifications

G04654805

Courtesy of FORD MOTOR CO.
