Safety Belt Retractor - Third Row, Center: Notes

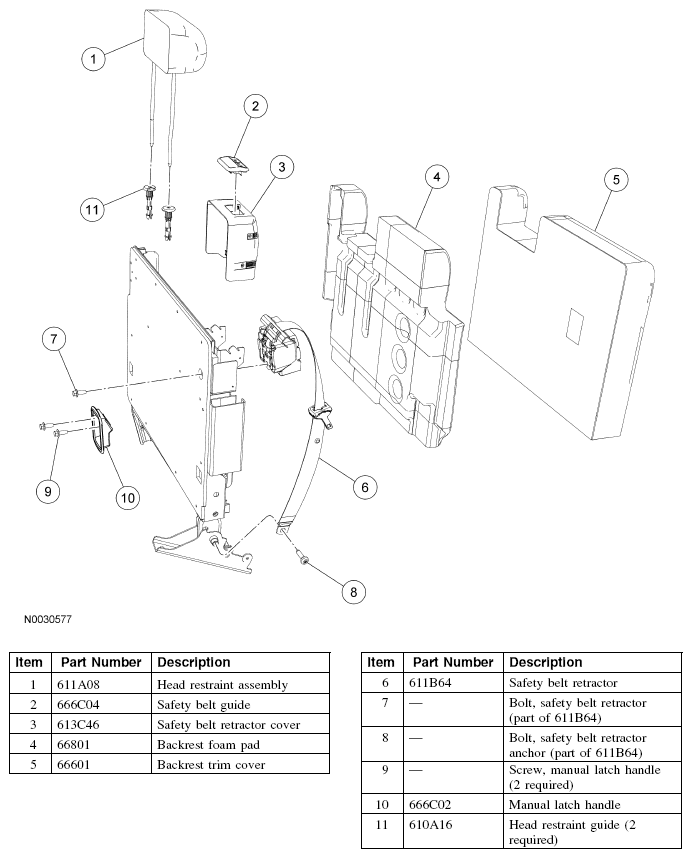

Fig 1: Identifying Safety Belt Retractor Components - Third Row, Center

G04631309

Courtesy of FORD MOTOR CO.
