Powertrain Calibration Information: Notes

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

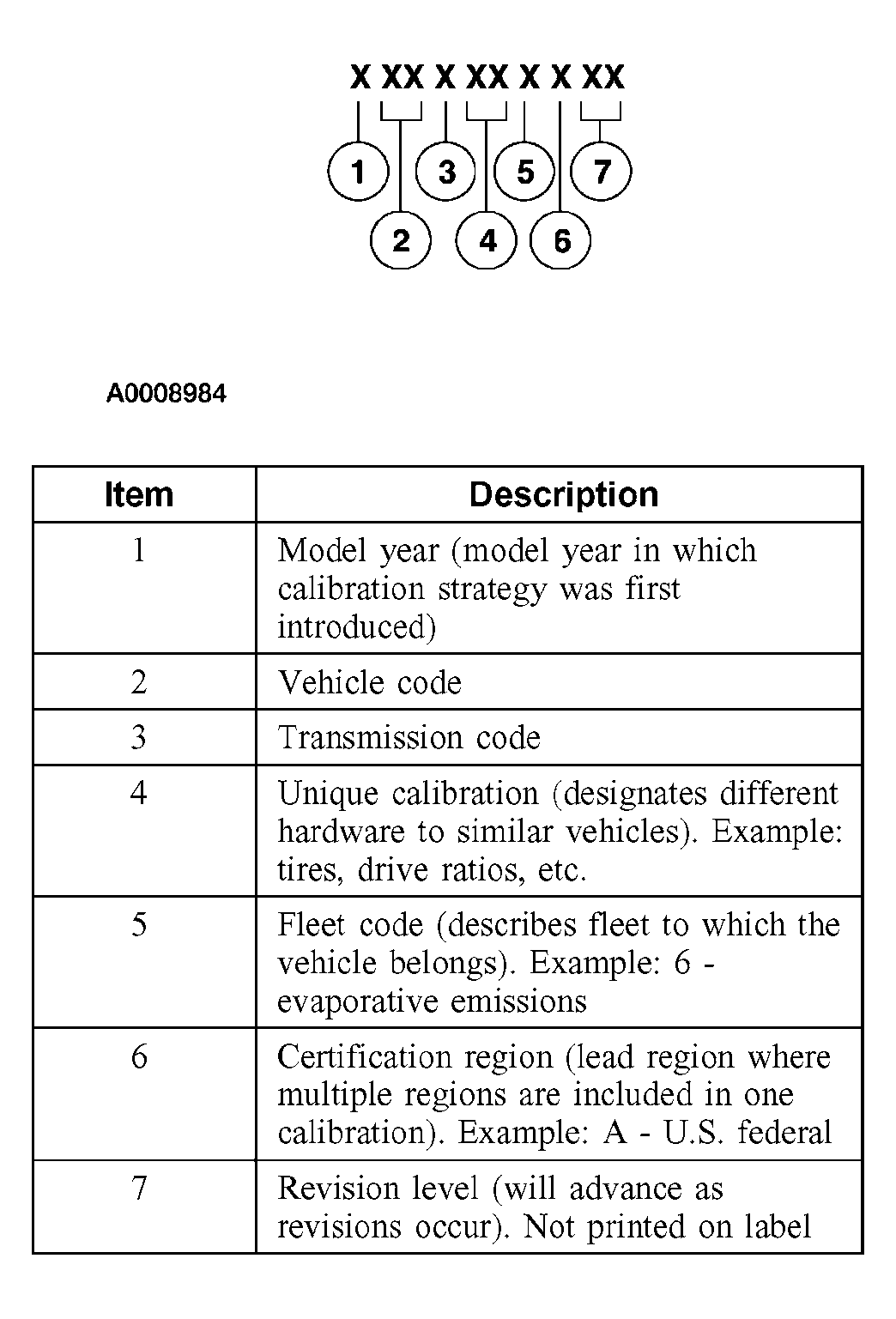

Fig 1: Identifying Powertrain Calibration Information Code

Courtesy of FORD MOTOR CO.

NOTE: Powertrain calibration information is limited to a maximum of five characters per line on the Vehicle Certification (VC) Label. Because of this, calibration identification consisting of more than five characters will wrap to the second line on the VC label.

Powertrain calibration information is printed in the lower right corner of the Vehicle Certification (VC) Label. Only the base calibration information is printed.

Fig 2: Identifying Revision Levels

Courtesy of FORD MOTOR CO.
