Variable Camshaft Timing (VCT) Oil Control Solenoid: Notes

MATERIAL SPECIFICATION

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

LH shown, RH similar.

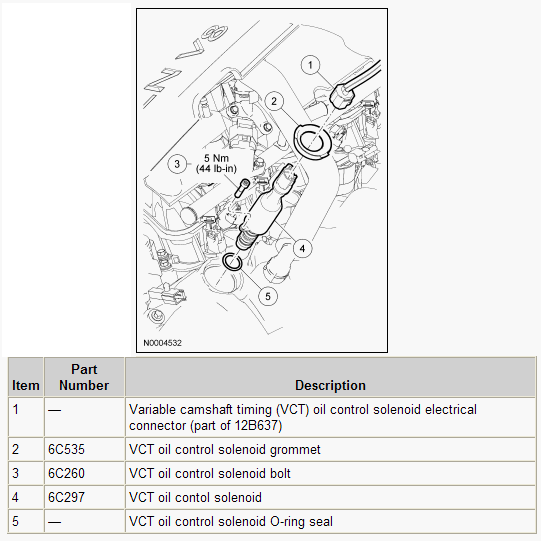

Fig 1: Variable Camshaft Timing (VCT) Oil Control Solenoid Replacement Components With Torque Specifications
G00498949Courtesy of FORD MOTOR CO.
