Seat - Third Row: Notes

NOTE: 60 percent seat shown, 40 percent seat similar.

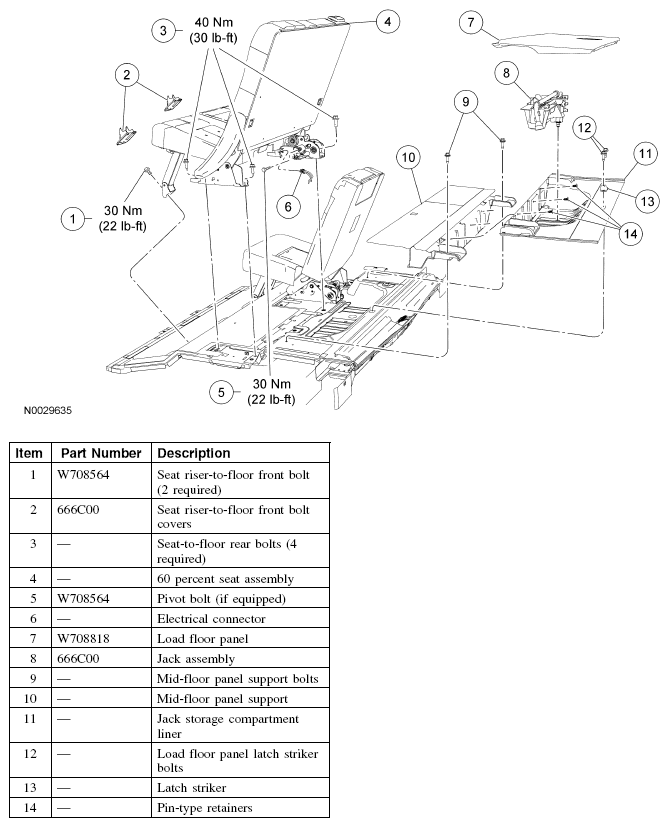

Fig 1: Exploded View Of Seat -- Third Row Replacement Components With Torque Specifications

G04630779

Courtesy of FORD MOTOR CO.
