Home >> Ford >> 2006 >> Escape Base, 3.0 1, FWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Safety Belt System >> Removal And Installation >> Safety Belt Retractor - Rear >> Notes

Safety Belt Retractor - Rear: Notes

SPECIAL TOOL(S) SPECIFICATIONS

G04622535
 Torx Bit, Safety Belt Bolt
501-010 (T77L-2100-A)

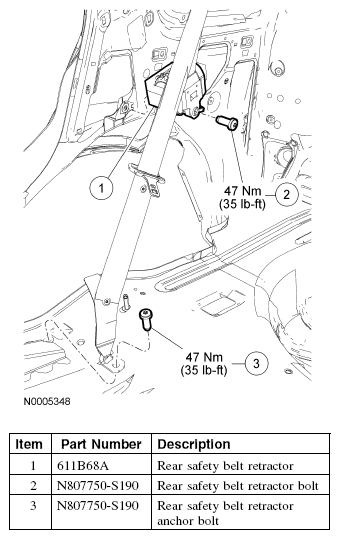

Fig 1: Safety Belt Retractor -- Rear With Torque Specifications
G04622536Courtesy of FORD MOTOR CO.
