Safety Belt Buckle - Front: Notes

NOTE: LH shown, RH similar.

NOTE: Seat backrest and armrest removed for clarity.

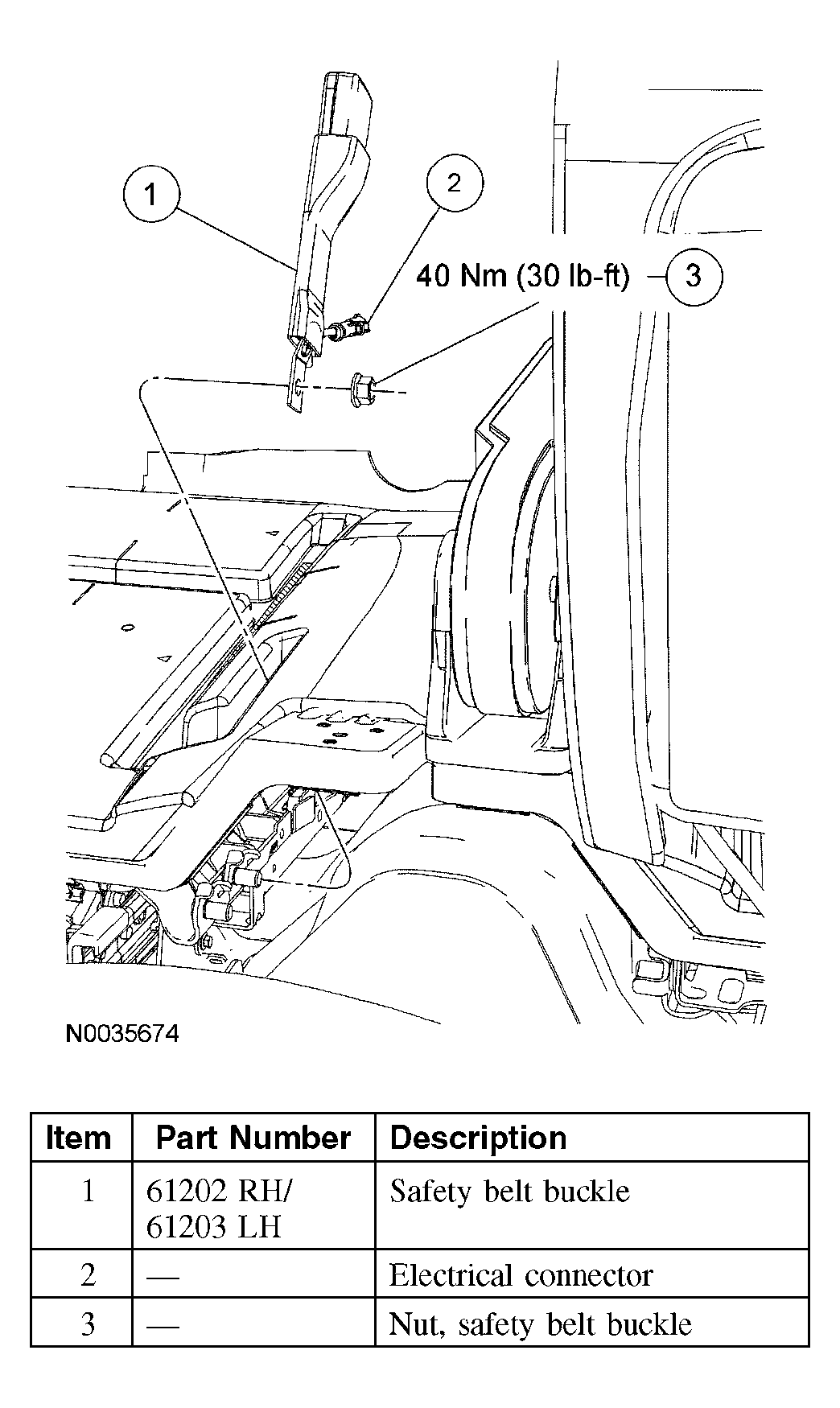

Fig 1: Removing/Installing Safety Belt Buckle - Front

G04586258

Courtesy of FORD MOTOR CO.
