Power Steering Control Valve Actuator: Notes

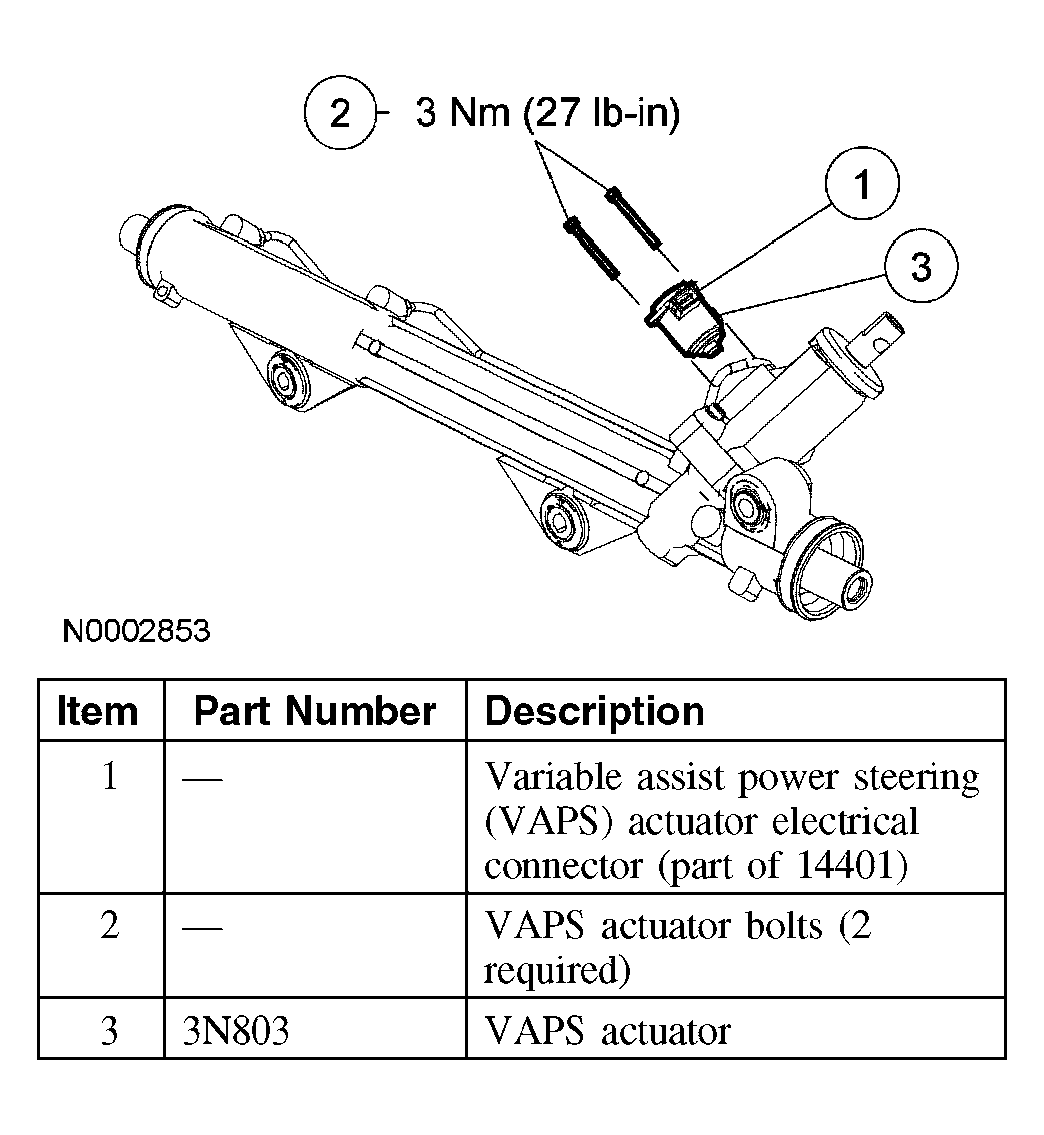

Fig 1: Removing Power Steering Control Valve Actuator With Torque Specification

G04007098

Courtesy of FORD MOTOR CO.
