Fuel Rail and Fuel Injector - Exploded View

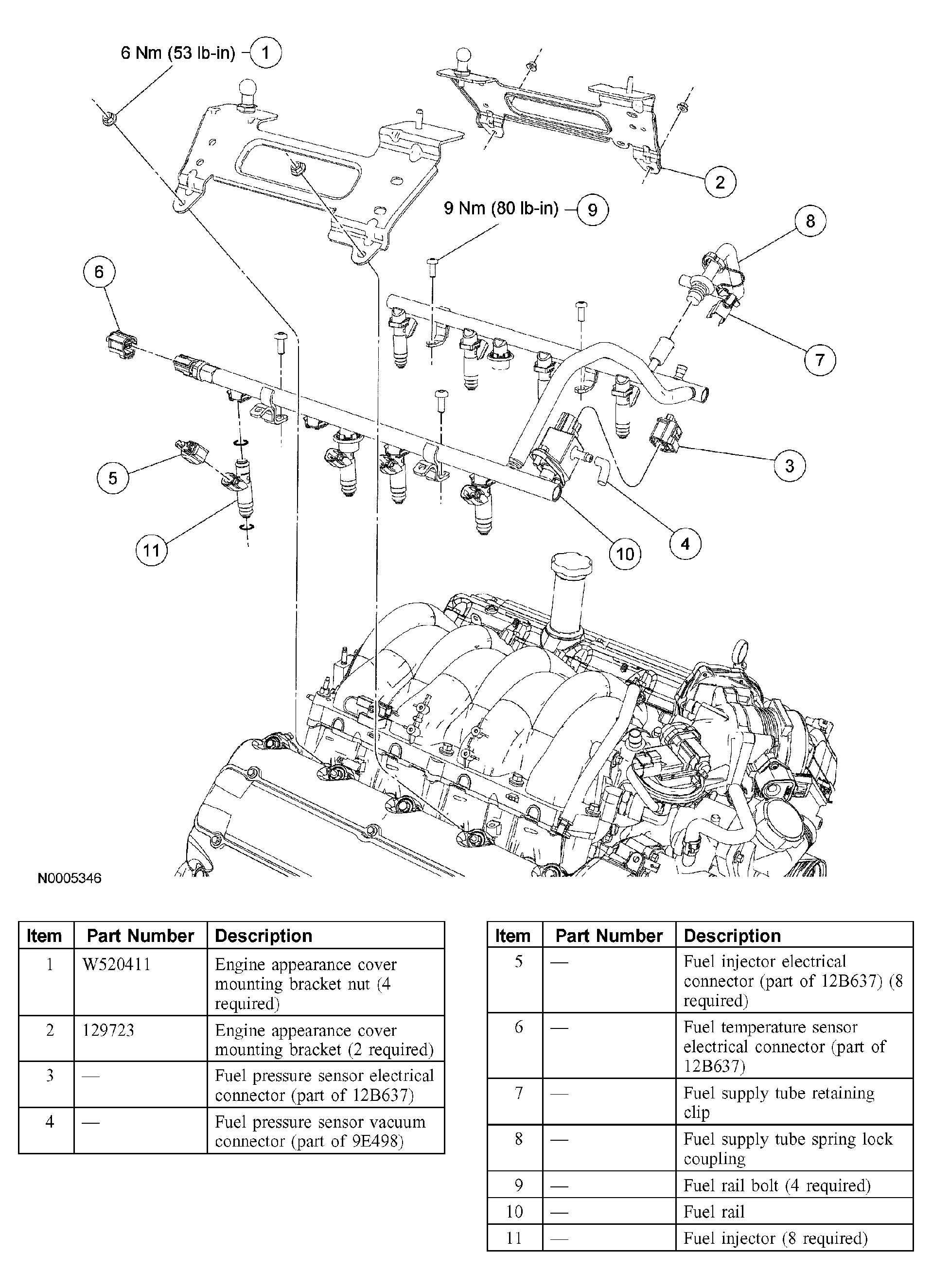

Fig 1: Exploded View Of Fuel Rail And Fuel Injector With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the REMOVAL AND INSTALLATION  in this article.
