Exhaust Gas Recirculation (EGR) System Module and Tube - Exploded View

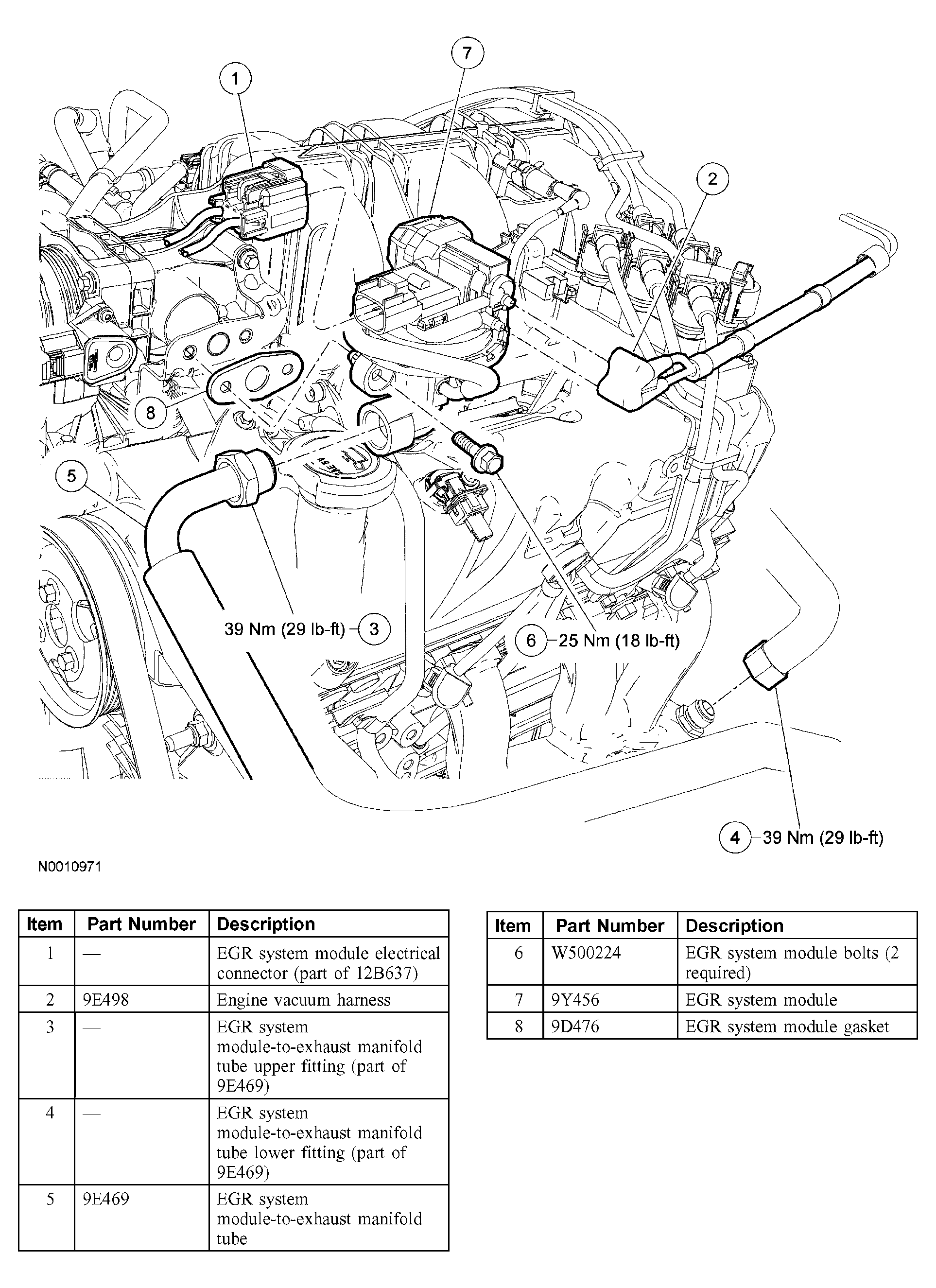

Fig 1: Exploded View Of Exhaust Gas Recirculation System Module And Tube
G03984942Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
