Window Regulator Motor - Rear Quarter: Notes

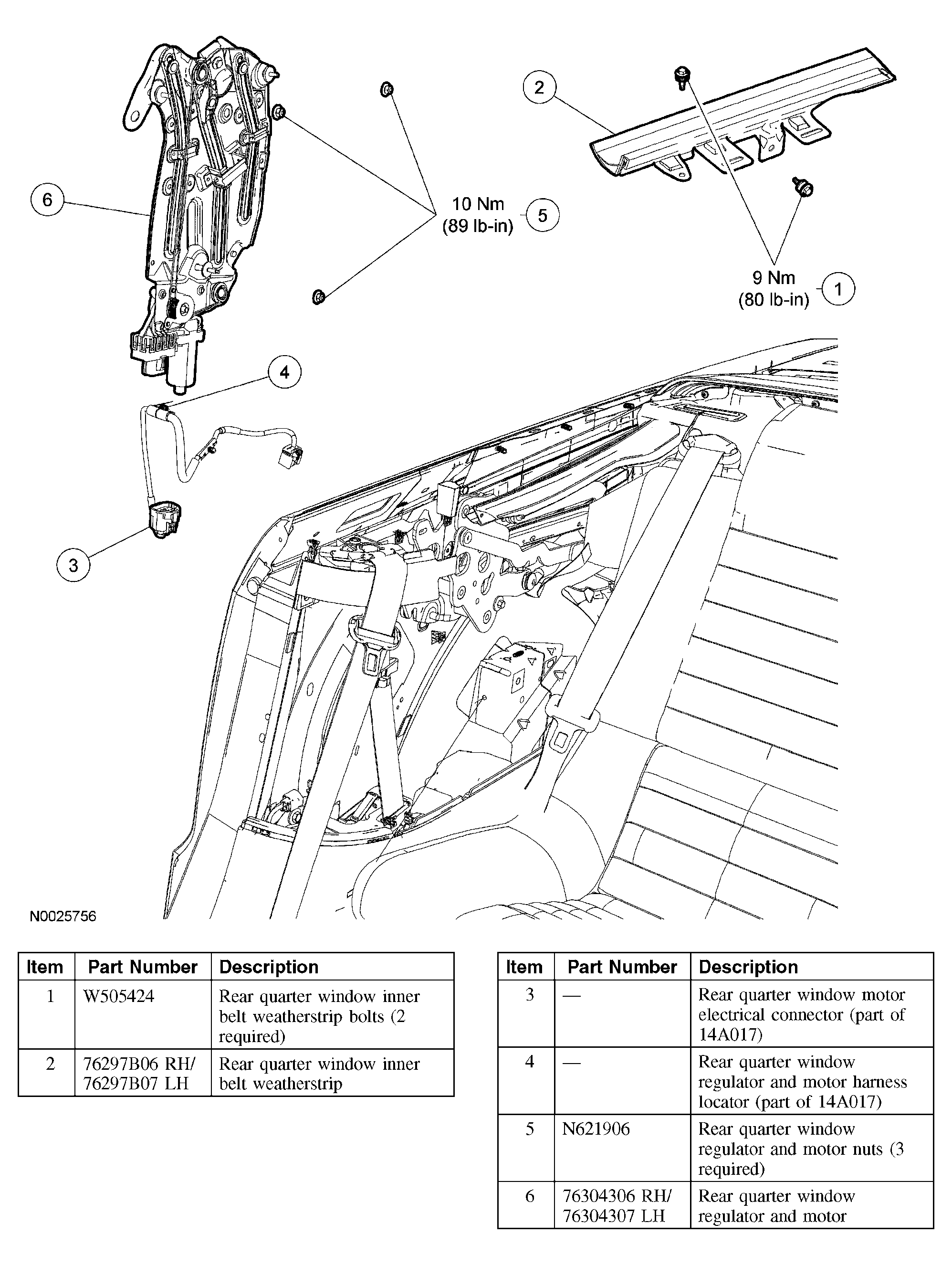

Fig 1: Identifying Rear Quarter Window Regulator Motor

G03987093

Courtesy of FORD MOTOR CO.
