Seat - Front
>>
Notes
Seat - Front: Notes
NOTE:
Driver seat shown, passenger seat similar.

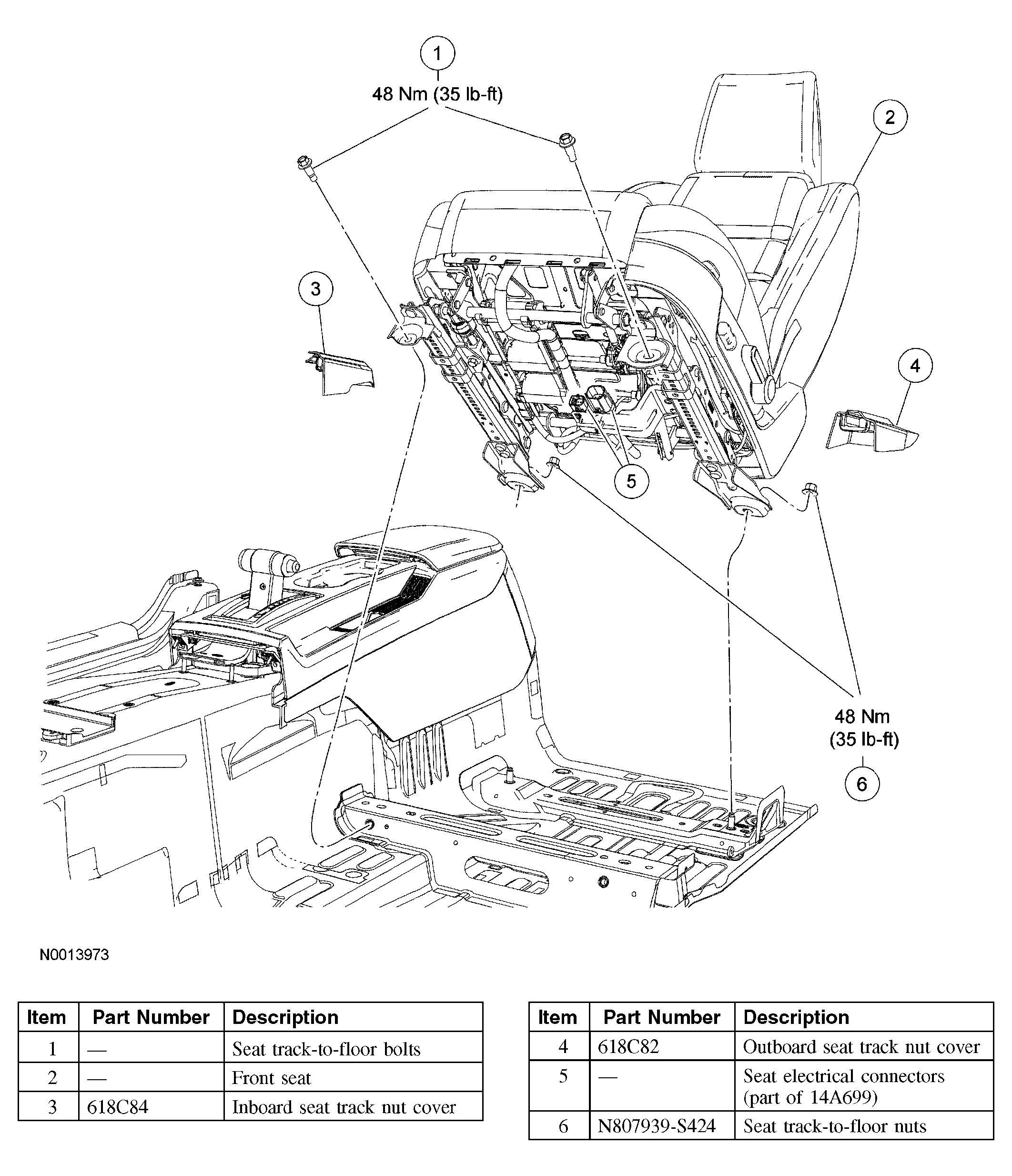

Fig 1: Removing Driver Seat
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
