In-Vehicle Temperature Sensor - EATC

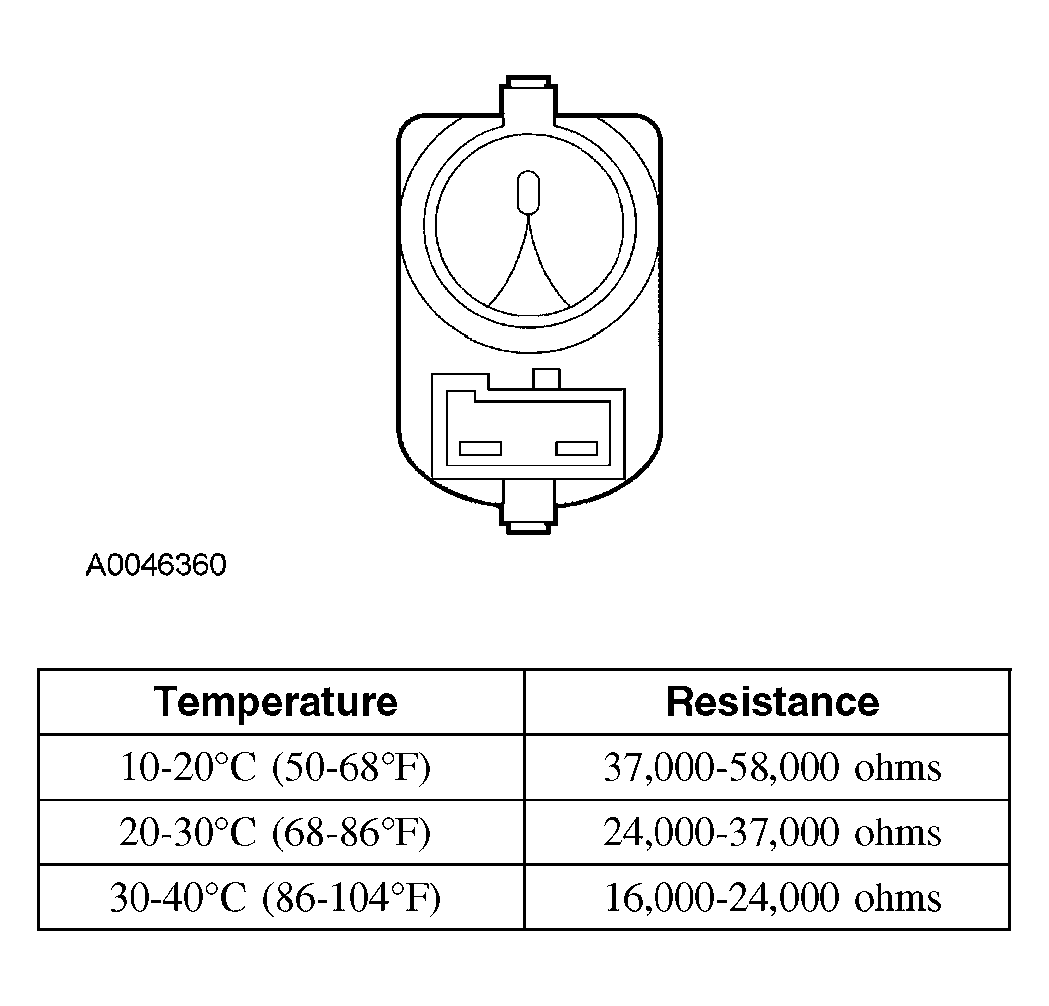

Fig 1: Identifying In-Vehicle Temperature Sensor - EATC Connector
G04005700Courtesy of FORD MOTOR CO.
IN-VEHICLE TEMPERATURE SENSOR TEMPERATURE AND RESISTANCE SPECIFICATIONS

Temperature Resistance
10-20°C (50-68°F) 37,000-58,000 ohms
20-30°C (68-86°F) 24,000-37,000 ohms
30-40°C (86-104°F) 16,000-24,000 ohms
