Wiper and Washer System - Exploded View

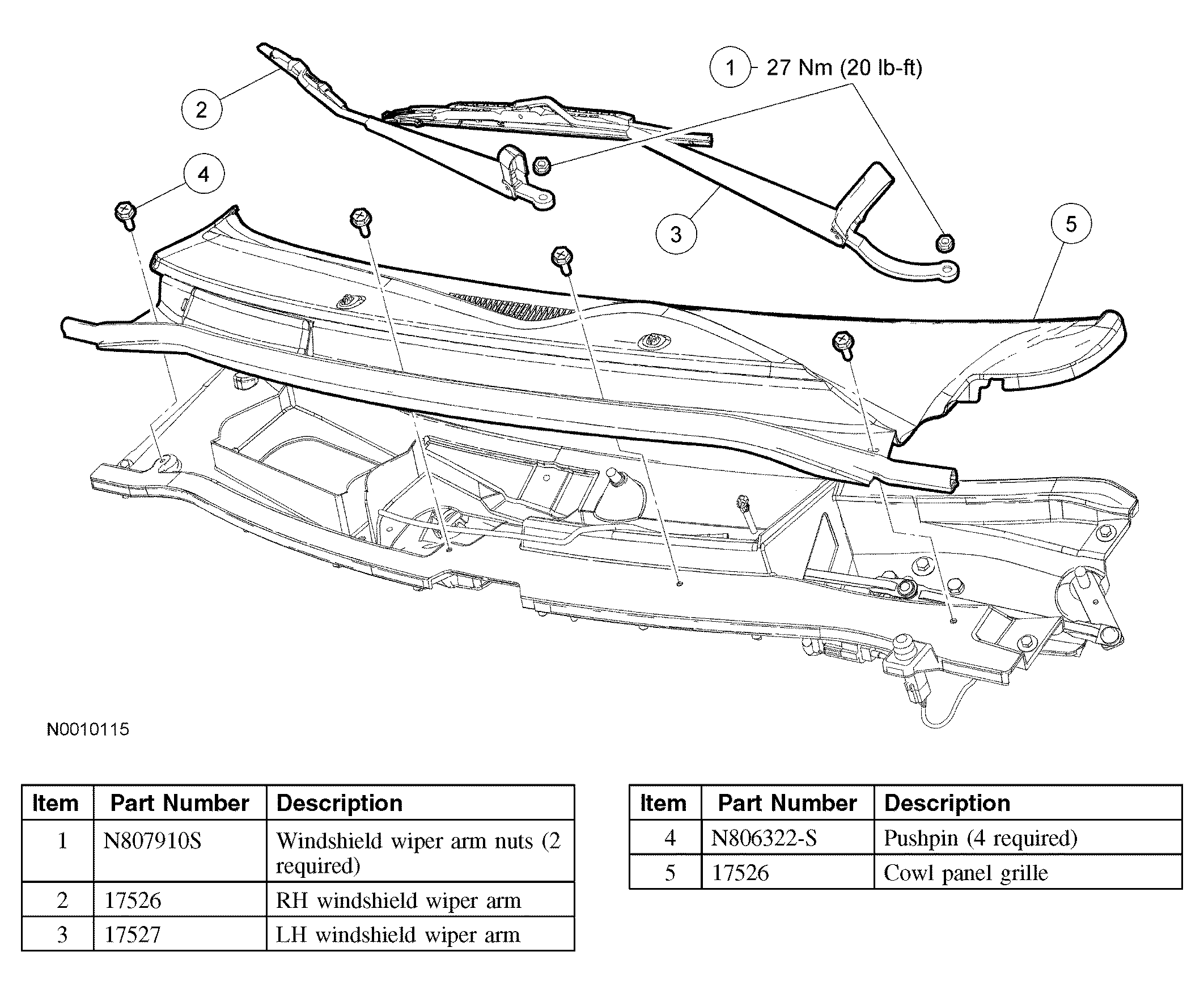

Fig 1: Removing & Installing Wiper Arms And Cowl Panel Grille

Courtesy of FORD MOTOR CO.

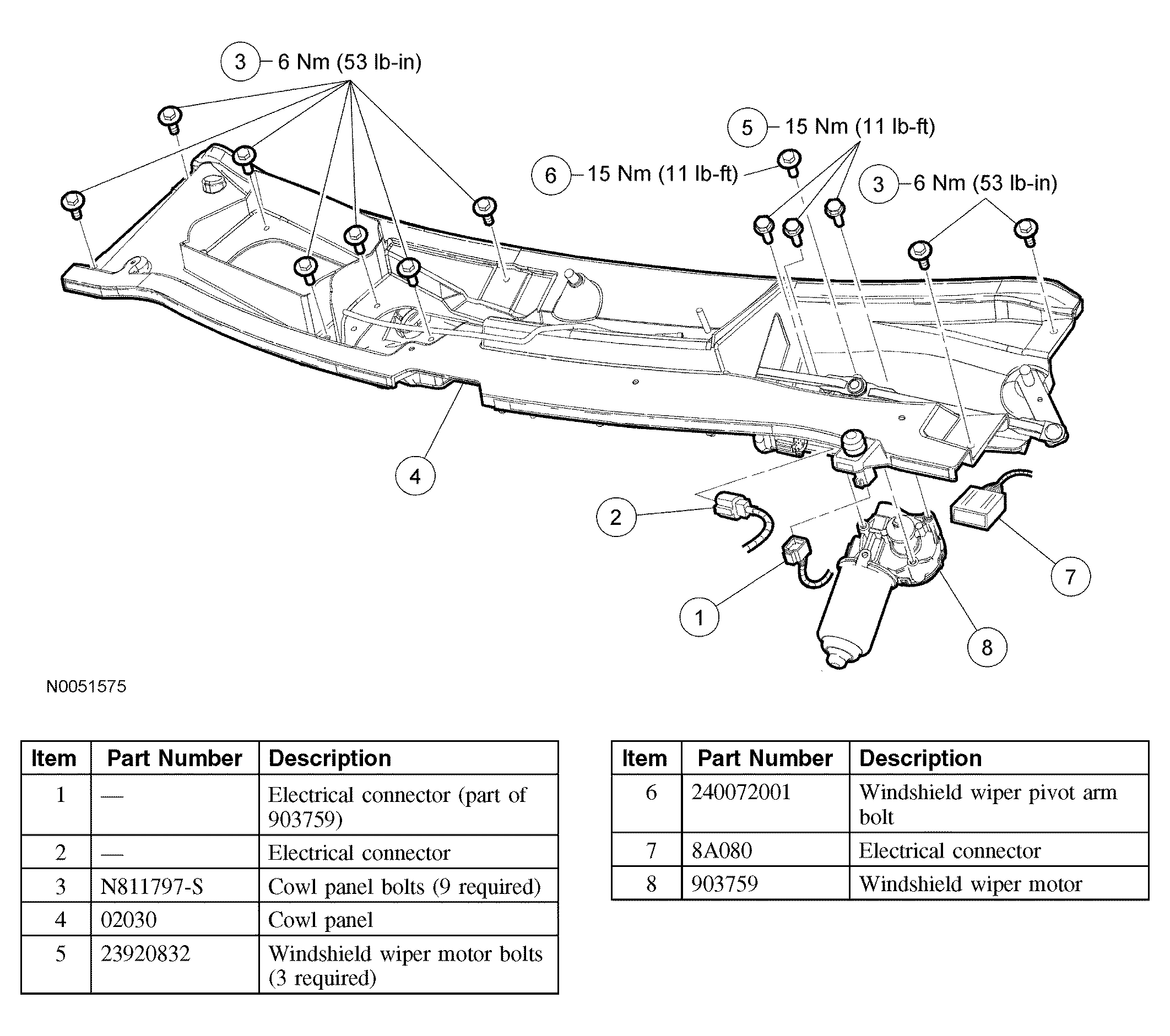

Fig 2: Removing & Installing Cowl Panel And Windshield Wiper Motor

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate component procedures.
