Mike's Workshop Manuals: Service manuals for every vehicle

Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> MULTIFUNCTION Electronic Modules System >> Removal And Installation >> Smart Junction Box (SJB) >> Notes

Smart Junction Box (SJB): Notes

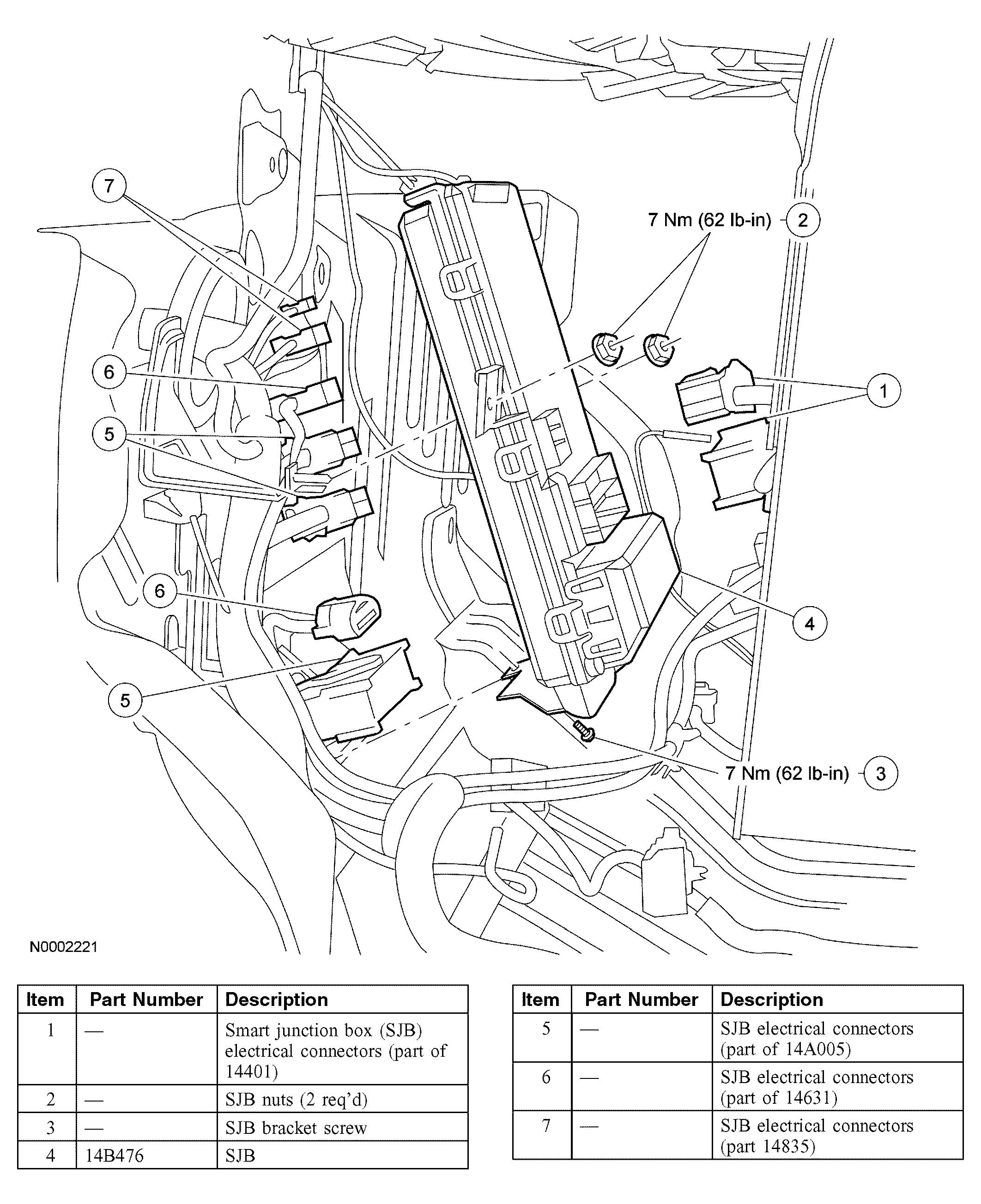

Fig 1: Removing & Installing Smart Junction Box (SJB)

G04006469

Courtesy of FORD MOTOR CO.
