Home >> Ford >> 2005 >> Focus ZX5 S, Standard >> Repair and Diagnosis >> Steering >> Steering Column >> Description And Operation >> Steering Column

Steering Column

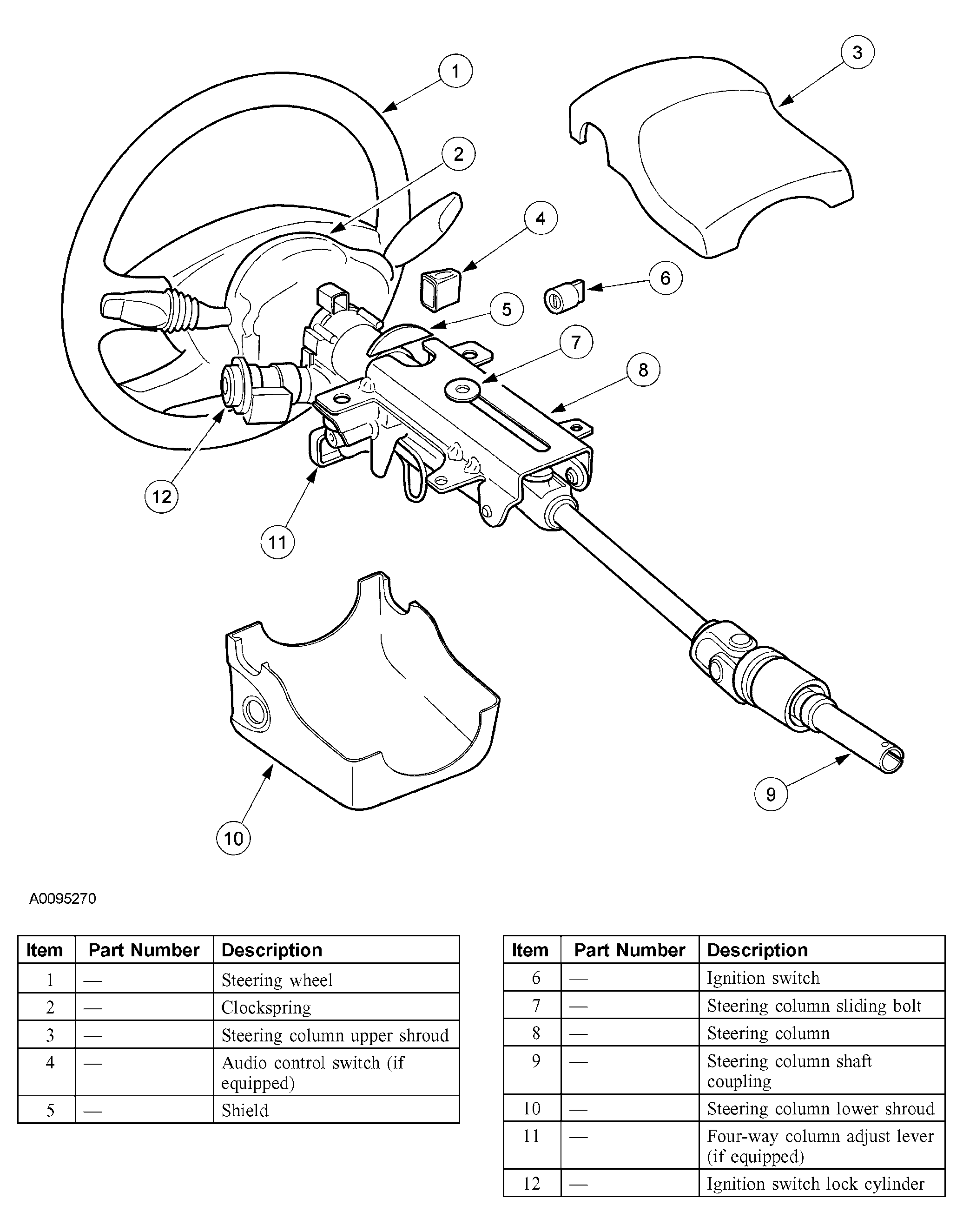

Fig 1: Identifying Steering Column Components

G03950229

Courtesy of FORD MOTOR CO.
