Removal and Installation

  1. Remove bolts and position aside the lower steering column cover.
    Fig 1: Removing Lower Steering Column Cover Bolts
    G03952065Courtesy of FORD MOTOR CO.
  2. Remove the temperature control knob.
  3. Remove the center instrument panel finish panel.
    • Disconnect the cigar lighter electrical connector.
    Fig 2: Removing Center Instrument Panel Finish Panel
    G03952176Courtesy of FORD MOTOR CO.
  4. Remove the screw and detach the temperature control switch.

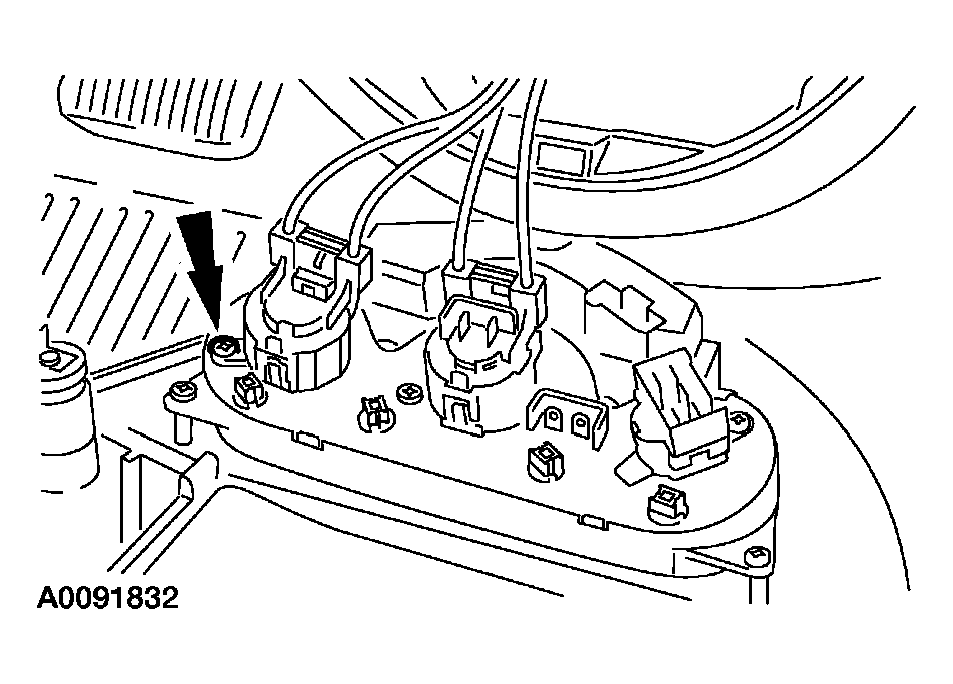

    Fig 3: Removing Screw And Detaching Temperature Control Switch
    G03952181Courtesy of FORD MOTOR CO.
  5. Detach the temperature control cable and remove the temperature selector cable assembly.

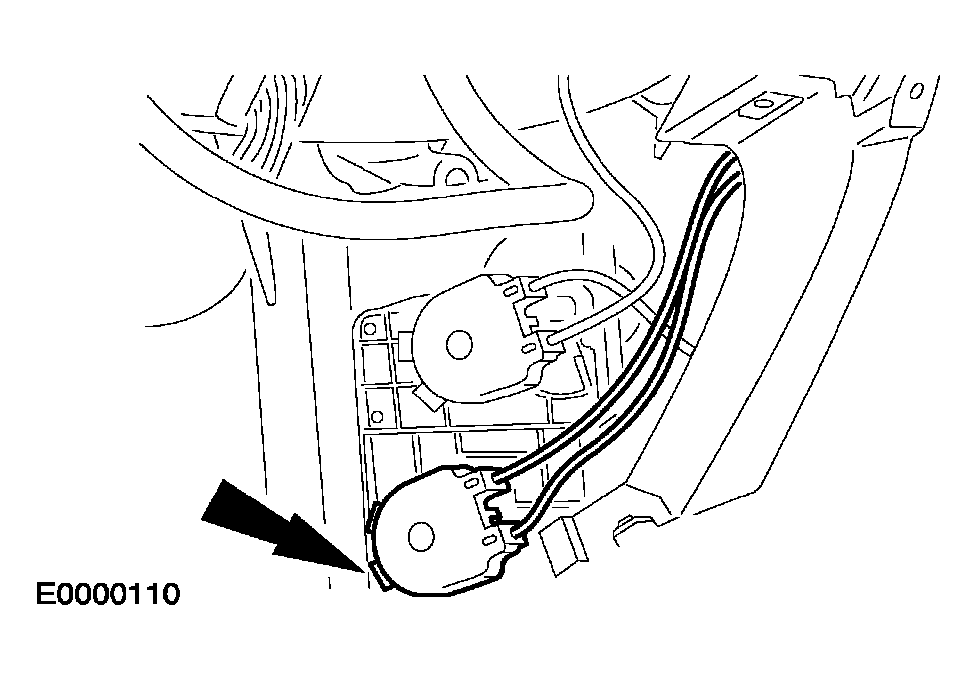

    Fig 4: Removing Temperature Selector Cable Assembly
    G03952182Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
