Removal and Installation

  1. Remove bolts and position aside the lower steering column cover.

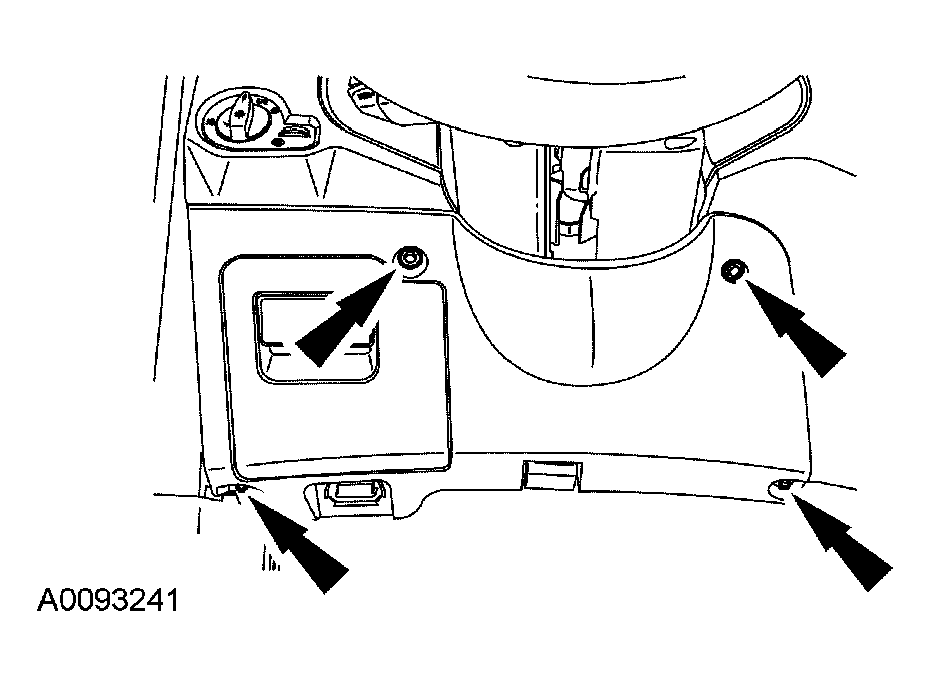

    Fig 1: Removing Lower Steering Column Cover Bolts
    G03952065Courtesy of FORD MOTOR CO.
  2. Remove the function selector knob.
  3. Remove the center instrument panel finish panel.
    • Disconnect the cigar lighter electrical connector.

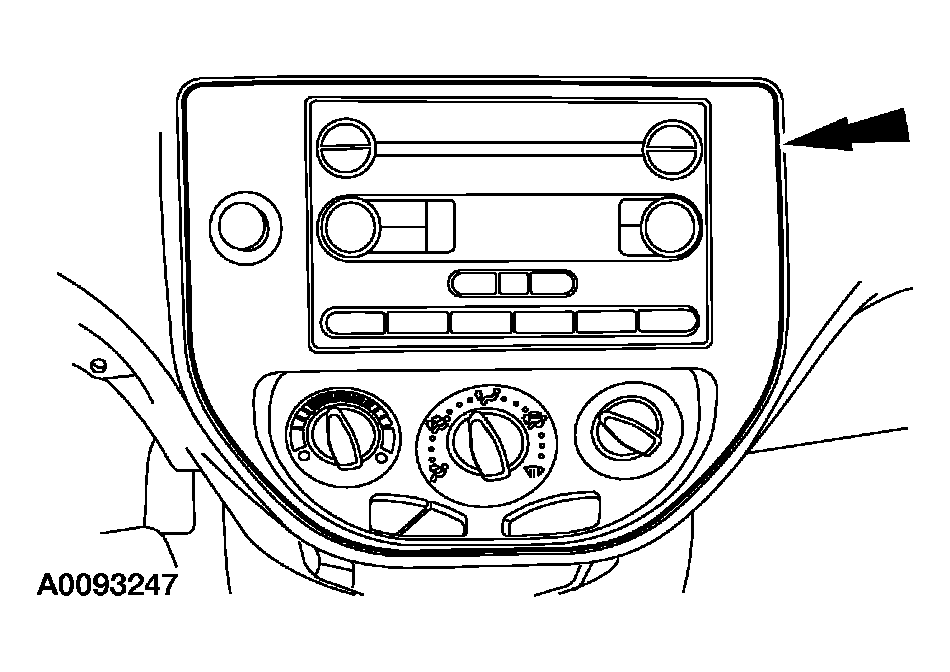

    Fig 2: Removing Center Instrument Panel Finish Panel
    G03952176Courtesy of FORD MOTOR CO.
  4. Detach the function selector switch.
    1. Disconnect the electrical connector.
    2. Remove the screw and detach the function selector switch.

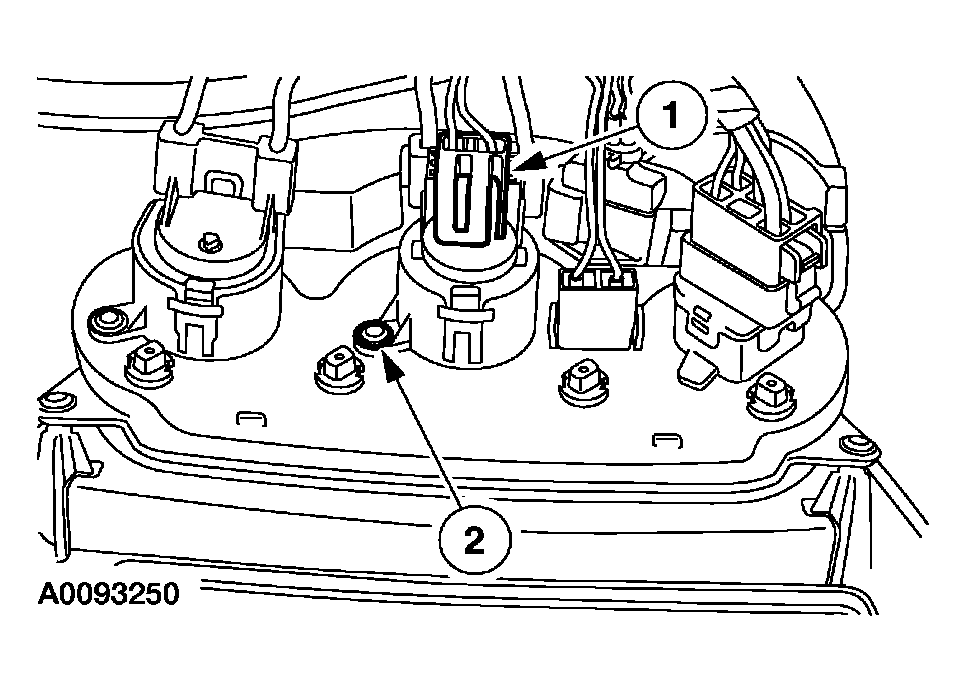

    Fig 3: Detaching Function Selector Switch
    G03952185Courtesy of FORD MOTOR CO.
  5. Detach the function selector cable and remove the function selector switch/cable assembly.

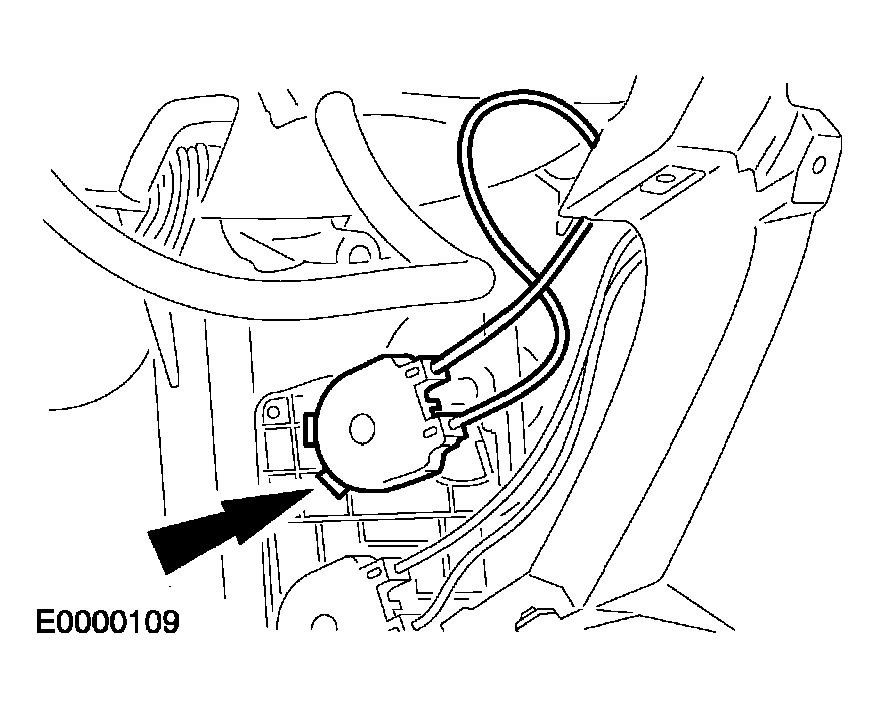

    Fig 4: Detaching Function Selector Cable And Removing Function Selector Switch/Cable Assembly
    G03952186Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
