Safety Belt System - Exploded View, Child Safety Seat Tether Anchor

NOTE: Second row LH side seat removed for clarity.

NOTE: Carpet removed for clarity.

NOTE: Second row center tether anchor only available on the 40/20/40 seat.

NOTE: Sealant must  be applied to the tether anchor bolts when installed.

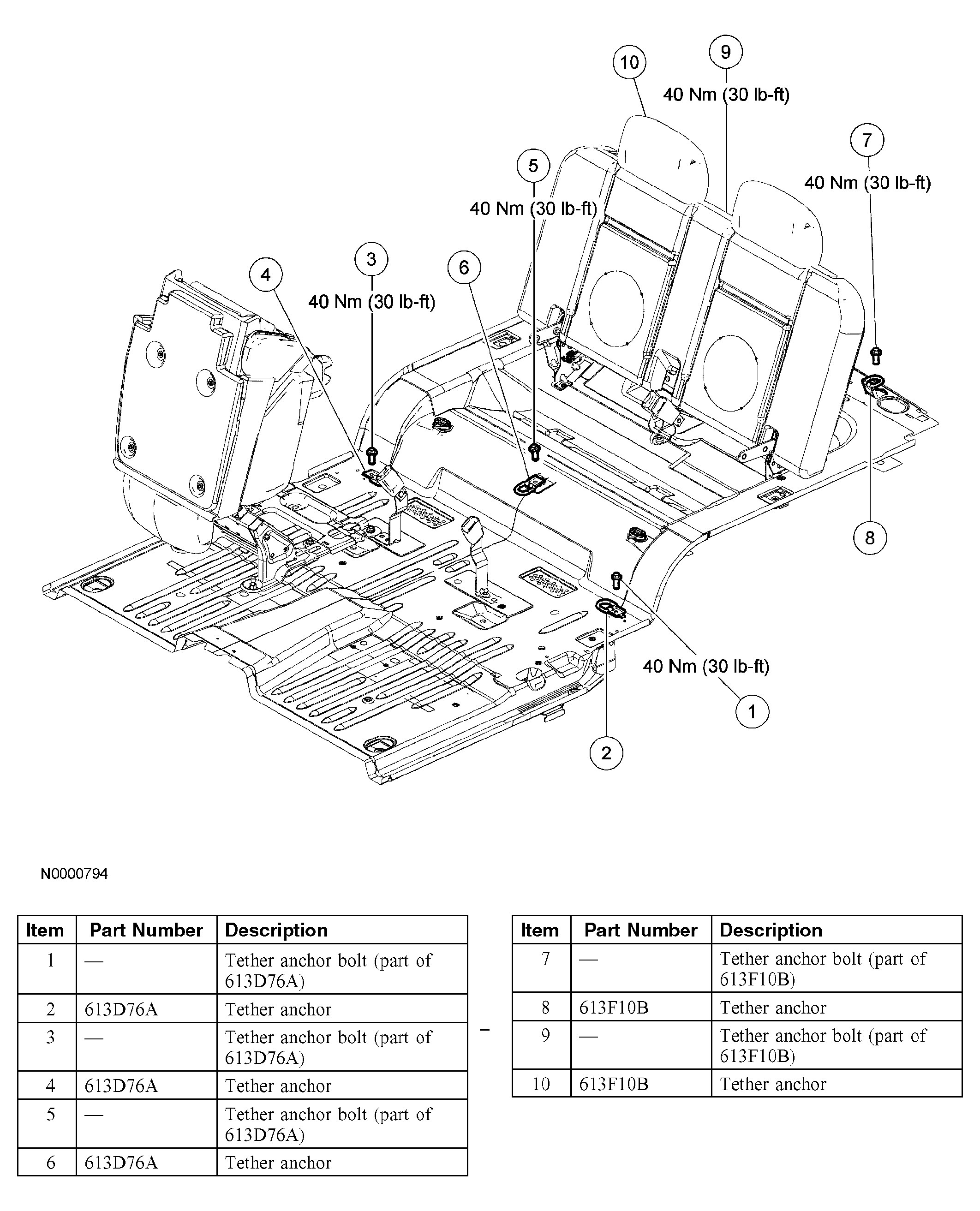

Fig 1: Exploded View Of Child Safety Seat Tether Anchor Safety Belt System With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures.
