In-Vehicle Repair: Flexplate: Notes

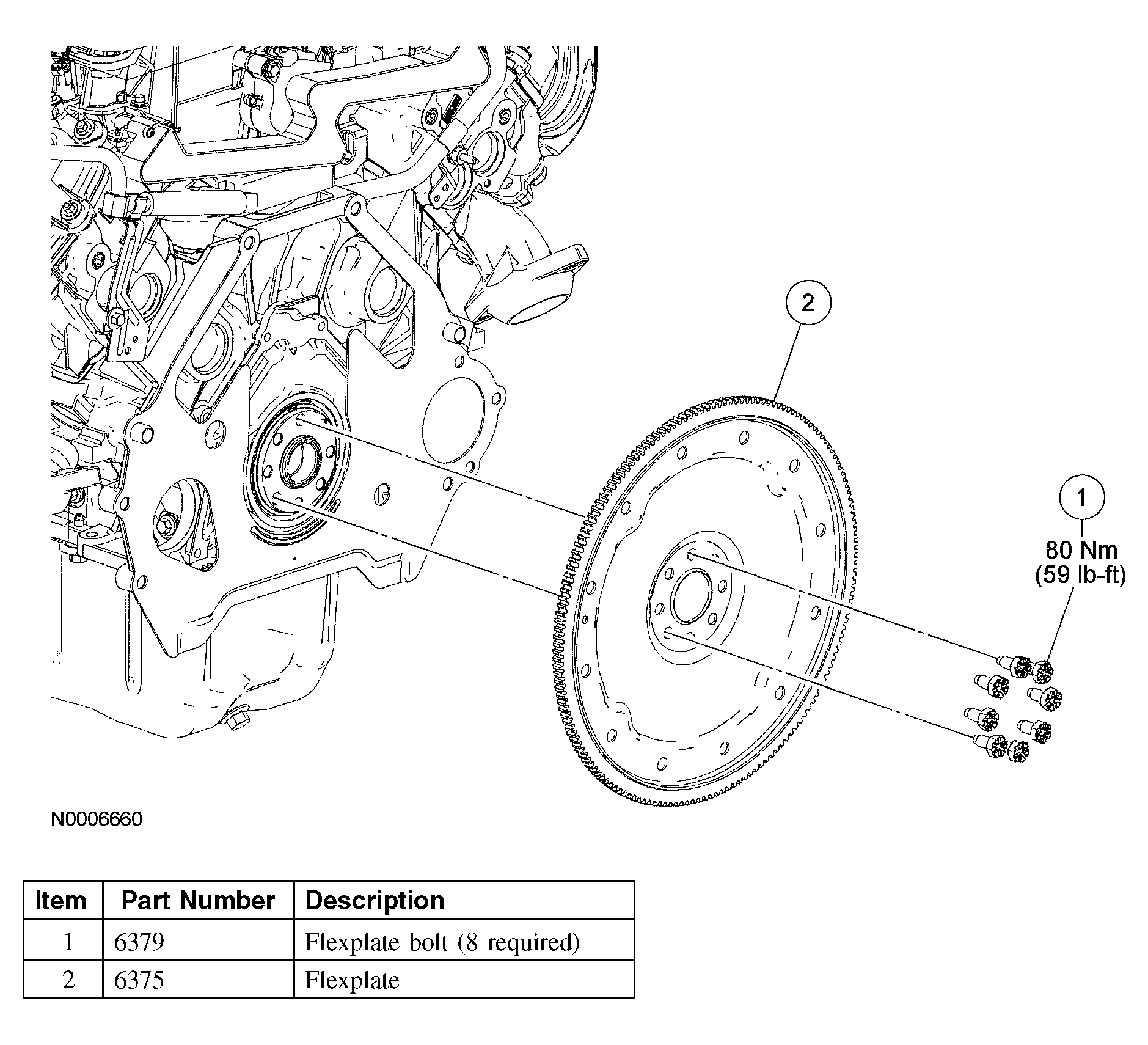

Fig 1: Identifying Flexplate Components

G03933592

Courtesy of FORD MOTOR CO.
