Spring Codes
WARNING: This page is about a different car, the 2006 Lincoln Navigator and 2006 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

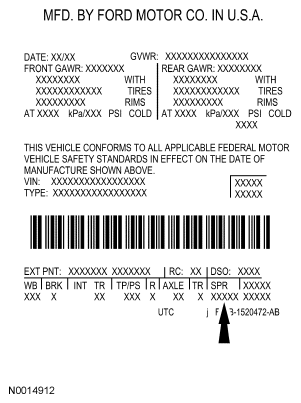

Spring codes are listed as a 2-part code. The first character listed identifies the front spring code. The second character listed identifies the rear spring code
Air Suspension
- P - 4-corner auto adjustable air suspension
Front Springs
- AA - 5L14-3C098-AB
- BB - 5L14-3C098-BB
- CC - 3L1J-18B036-AA
- DD - 5L74-3C098-AC
- FF - 3L14-18B036-BA
- HH - 3L14-18B036-DA
Rear Springs
- 11 - 4L14-18W002-AA
- 33 - 5L14-5A965-BB
- 44 - 5L14-5A965-AB
- 55 - 4L1J-18W002-AA
- 66 - 5L74-5A965-AB
