Fuel Injector Sleeve: Installation

Verify the fuel injector bore is clean and dry.
Position the fuel injector sleeve onto the Injector Sleeve Replacer. Apply High Strength Threadlocker or equivalent to the very bottom (smallest diameter) and very top (largest diameter) flat areas.

Fig 1: Positioning Fuel Injector Sleeve Onto Injector Sleeve Replacer
Courtesy of FORD MOTOR CO.

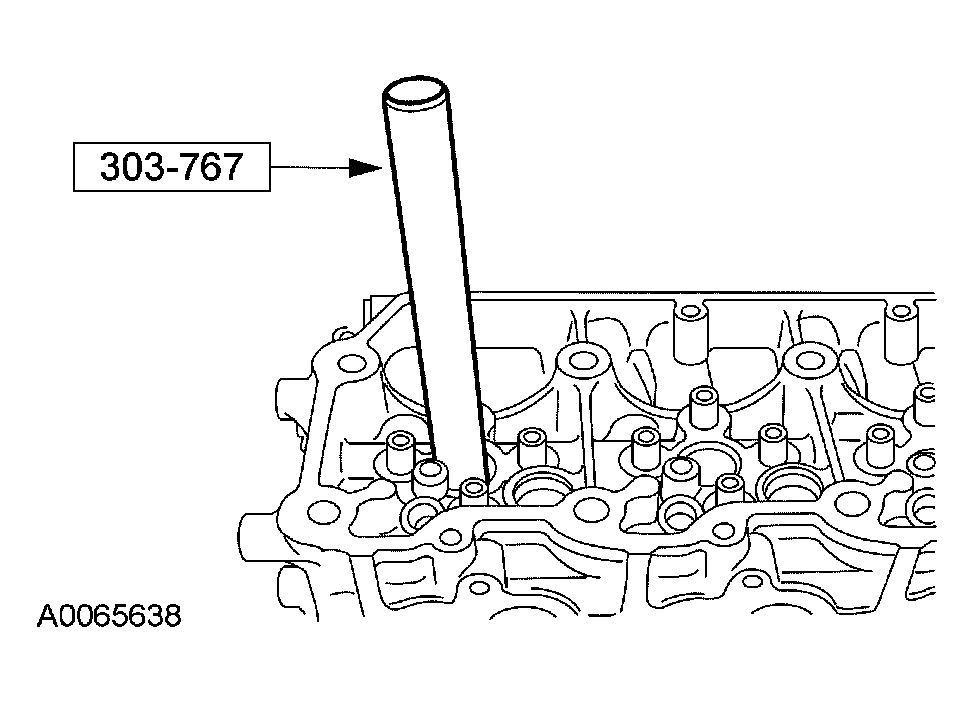

Position the fuel injector sleeve into the cylinder head fuel injector bore. Seat the fuel injector sleeve in the fuel injector bore, using a rubber mallet. If any sealant gets into the inside of the injector sleeve, it must be cleaned out before it hardens.

Fig 2: Positioning Fuel Injector Sleeve Into Cylinder Head Fuel Injector Bore
Courtesy of FORD MOTOR CO.
Install the press-in-place gasket.
- Install the dowels and the gasket.
Fig 3: Identifying Press-In-Place Gasket
Courtesy of FORD MOTOR CO.
Install the rocker arm carrier and the bolts.

Fig 4: Installing Rocker Arm Carrier And Bolts With Torque Specifications
Courtesy of FORD MOTOR CO.
Install the lifting bracket on the cylinder head.
Install the cylinder heads. For additional information, refer to ENGINE - 6.0L DIESEL .
