Removal and Installation

  1. Remove the audio unit. For additional information, refer to AUDIO UNIT .
  2. Disengage the retaining clips and position aside the instrument cluster finish panel.
    Fig 1: Disengaging Retaining Clips
    G03910624Courtesy of FORD MOTOR CO.
  3. Remove the screws.

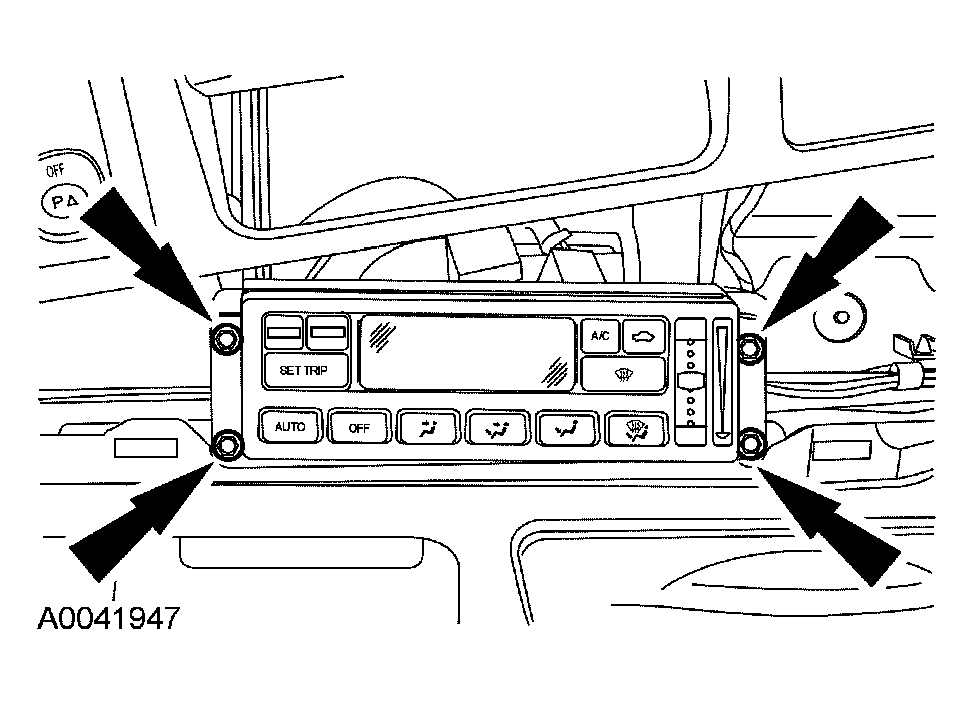

    Fig 2: Removing Screws
    G03910625Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connectors and remove the climate control assembly.

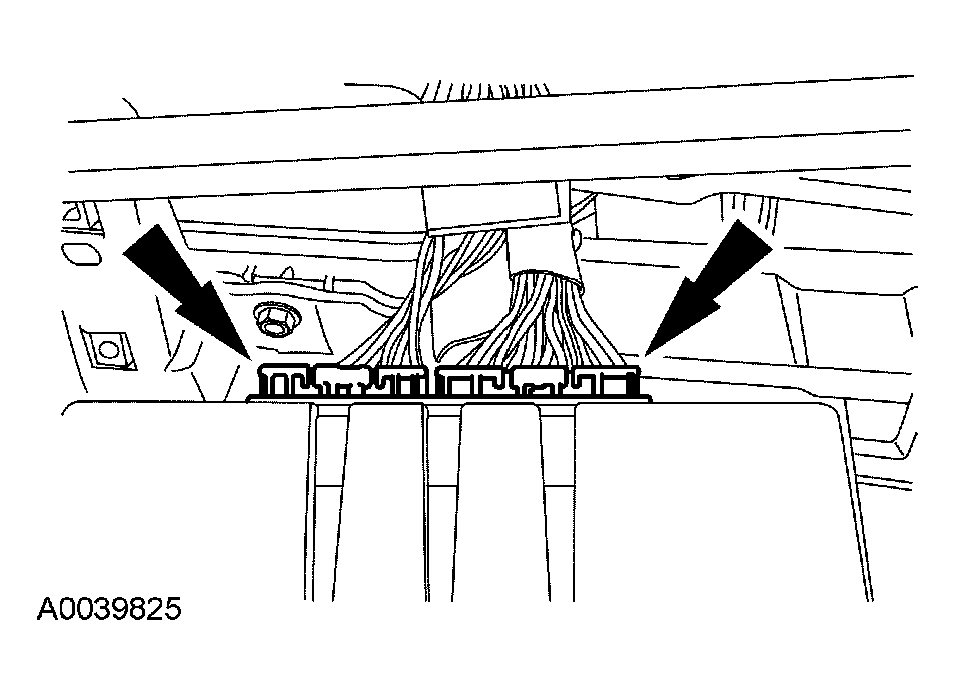

    Fig 3: Disconnecting Electrical Connectors And Removing Climate Control Assembly
    G03910626Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
