Seat adjust switch (Passenger Side Front): Schematic

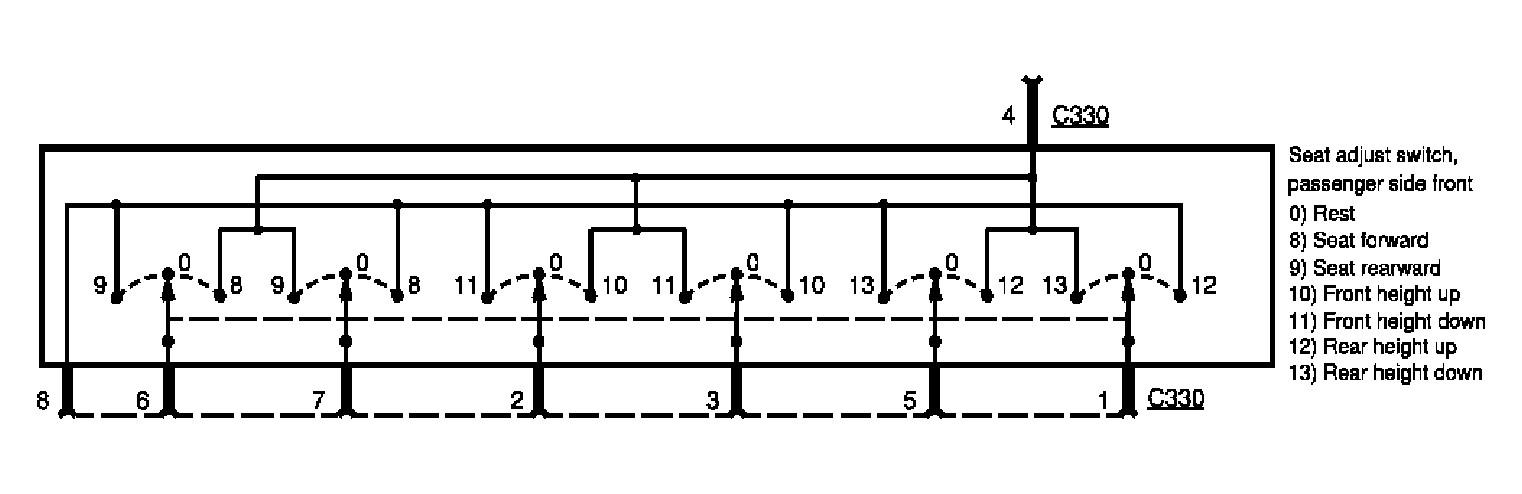

Fig 1: Seat Adjust Switch Schematic (Passenger Side Front)

G03987520

Courtesy of FORD MOTOR CO.
