Inner Tie Rod: Notes

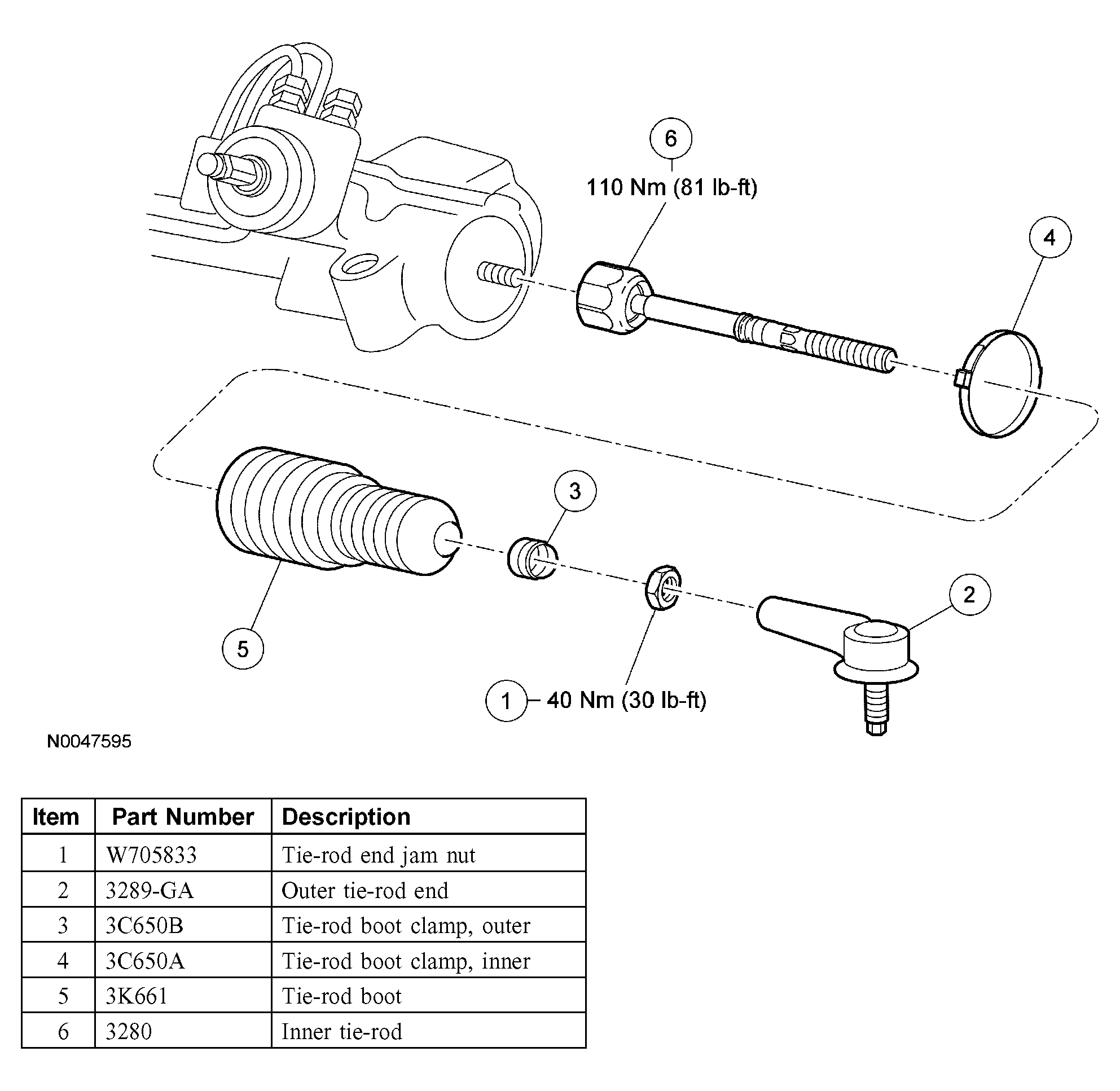

Fig 1: Identifying Inner Tie Rod Components (Escape & Mariner)

G03897609

Courtesy of FORD MOTOR CO.
