Side Air Bag Module, Left Connector End View (C367)

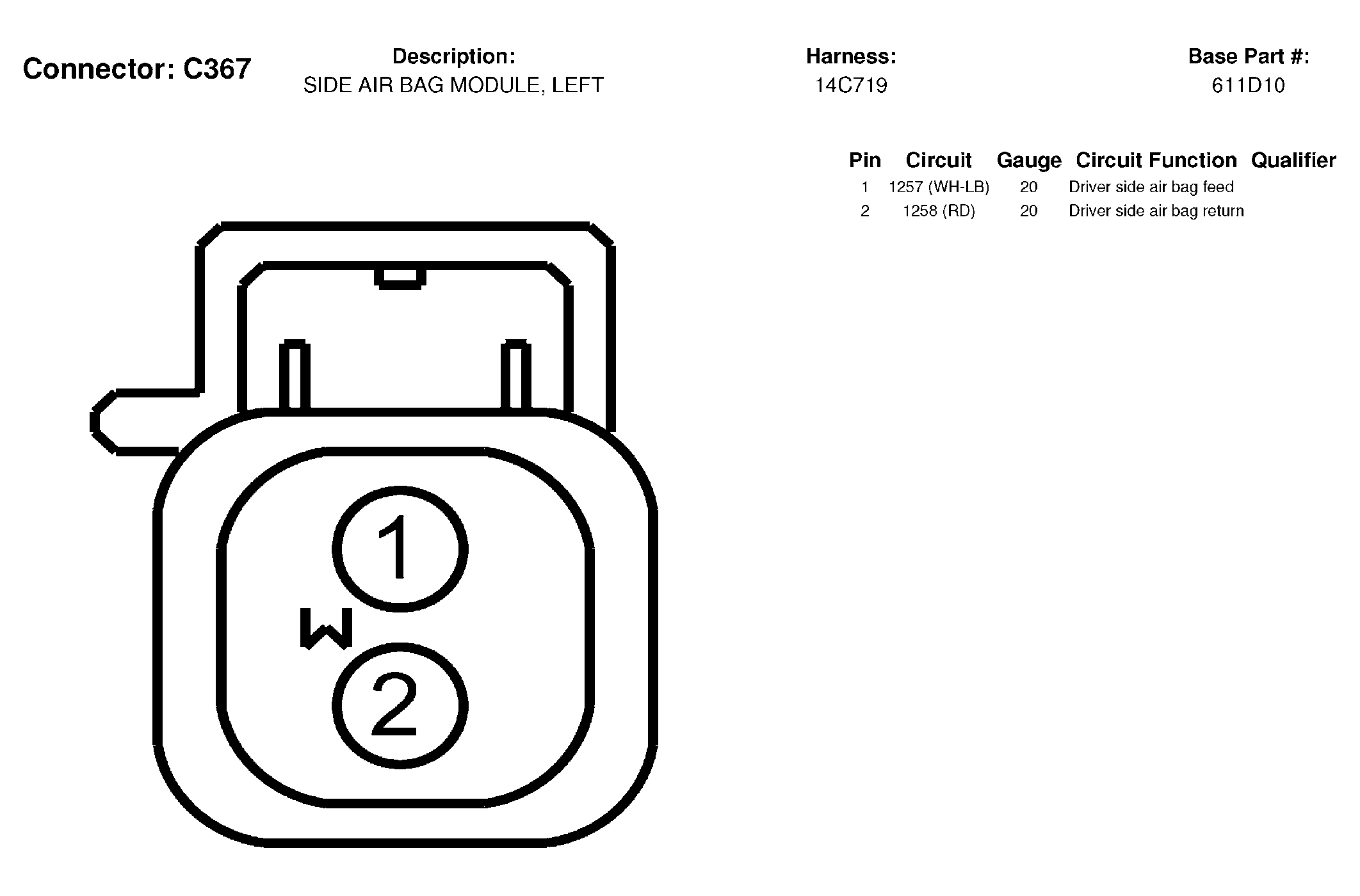

Fig 1: Side Air Bag Module, Left Connector End View (C367)
G03993288Courtesy of FORD MOTOR CO.
C367 CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
1 1257 (WH-LB) 20 Driver side air bag feed
2 1258 (RD) 20 Driver side air bag return
