Knock Sensor Connector End View (C109)

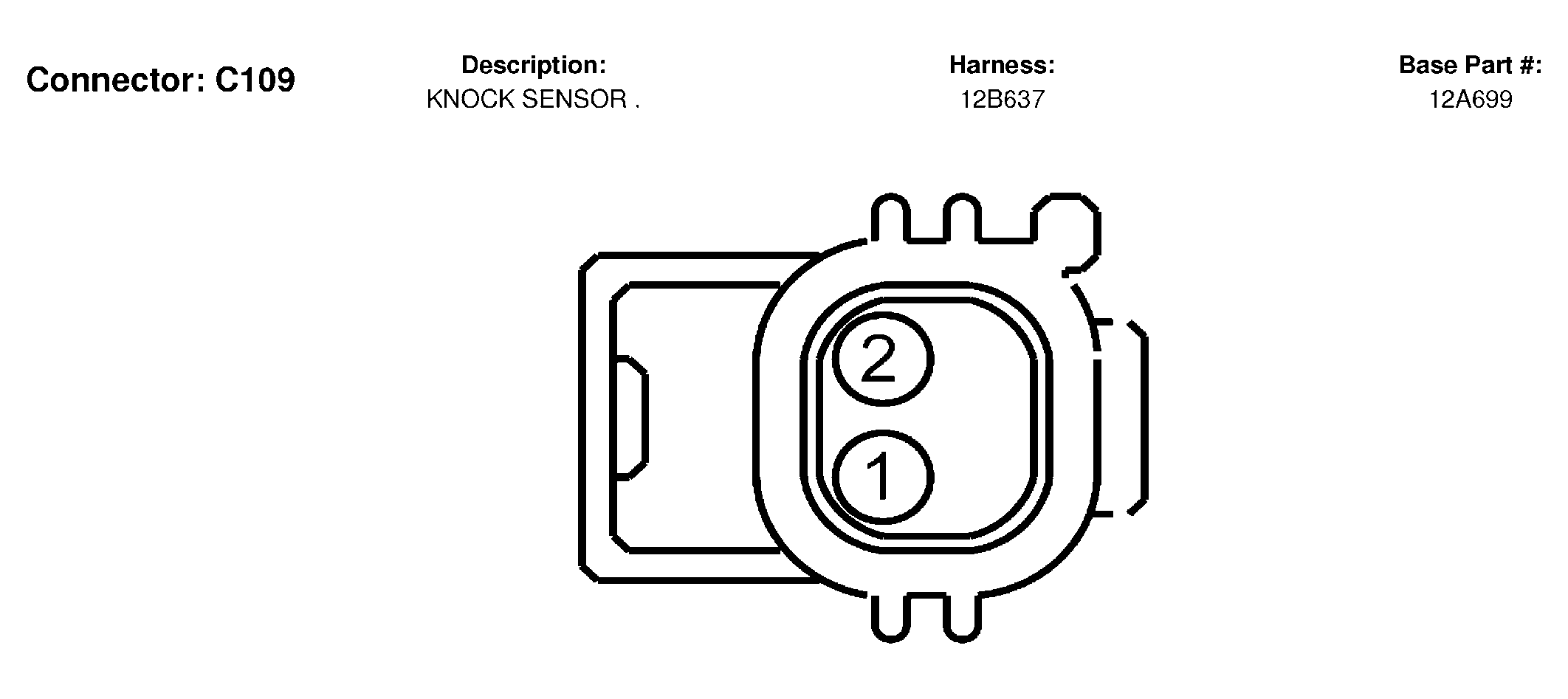

Fig 1: Knock Sensor Connector End View (C109)
G03993187Courtesy of FORD MOTOR CO.
C109 CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
1 311 (DG-VT) 20 Knock sensor -
2 310 (YE-RD) 20 Knock sensor +
