Autolamp Sensor Connector End View (C287)

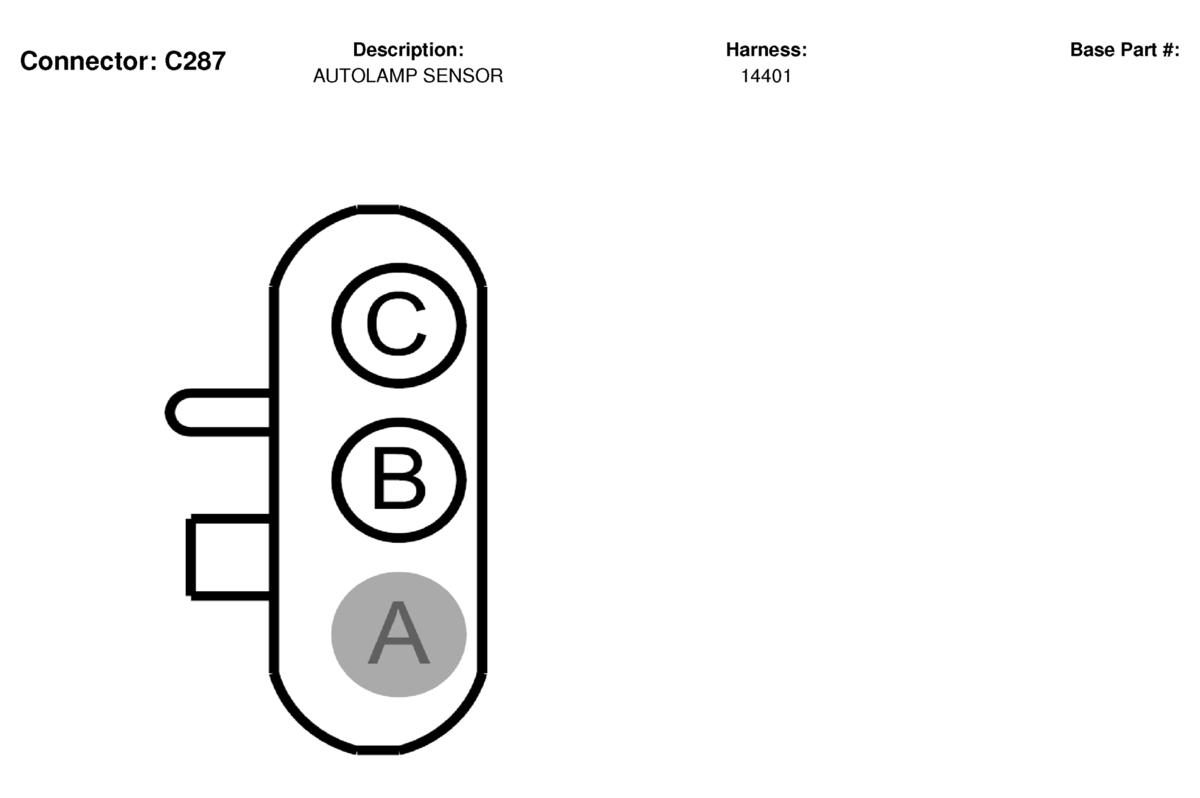

Fig 1: Autolamp Sensor Connector End View (C287)
G03993261Courtesy of FORD MOTOR CO.
C287 CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
A * * not used
B 570 (BK-WH) 20 Ground
C 7 (LG-YE) 20 Autolamp sensor signal
