Removal and Installation

    NOTE: Place the temperature selector switch in the full cold position before disengaging the temperature blend door actuator.
  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the temperature selector switch knob.
  3. Remove the temperature selector switch screw.
  4. Press the tab and rotate the temperature selector switch counterclockwise.
    • Remove the temperature selector switch.

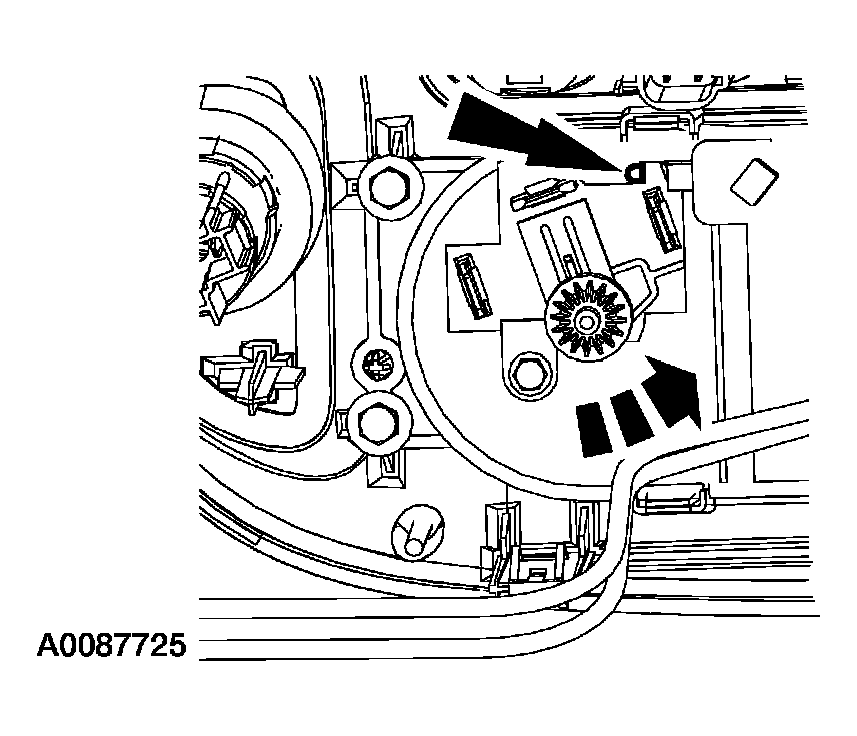

      Fig 1: Removing Temperature Selector Switch
      G03902508Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    • Place the temperature selector switch in the full cold position before installation.
