Removal and Installation

  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the function selector switch knob.
  3. Press the tabs simultaneously and remove the function selector switch.

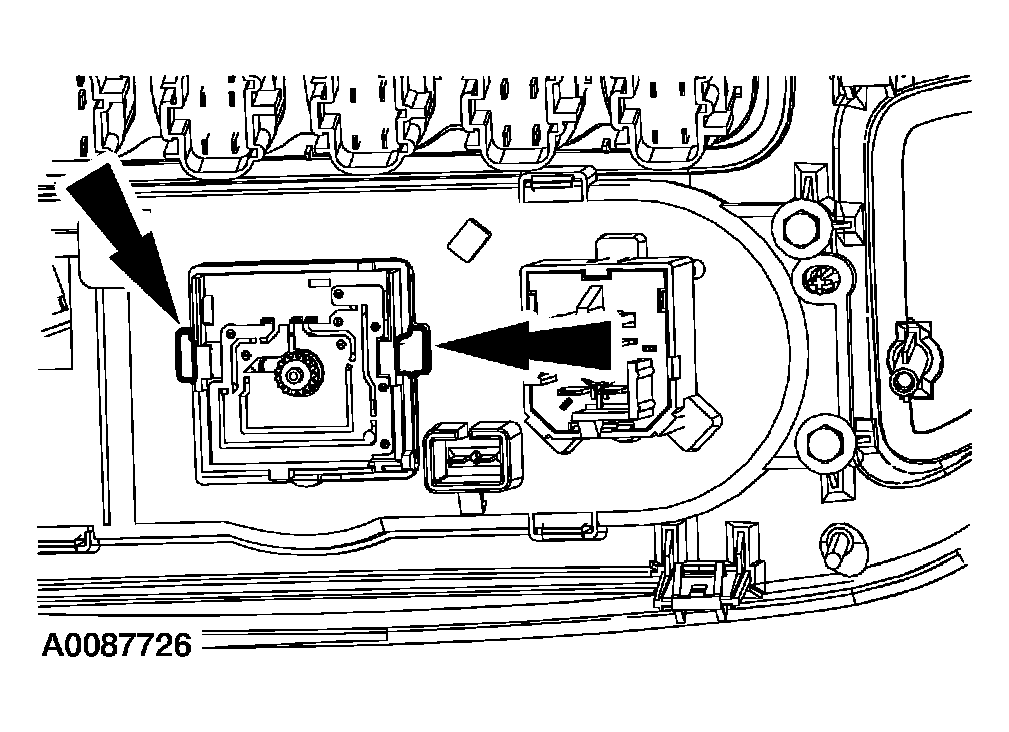

    4. Fig 1: Identifying Function Selector Switch
    G03902502Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
