Seat - Exploded View, Front

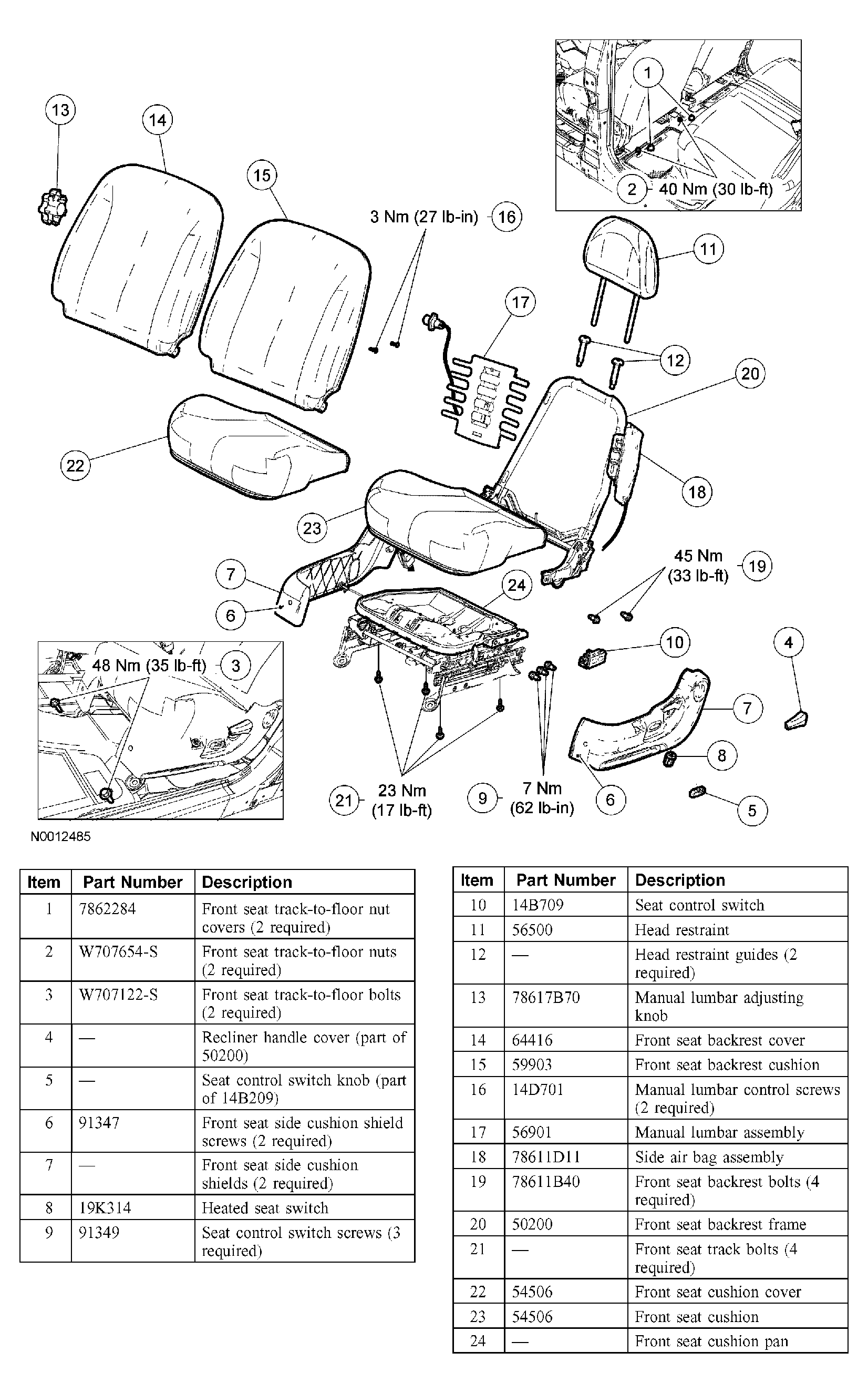

Fig 1: Exploded View Of Seat - Front

G03903244

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
