Speed Control Actuator: Notes

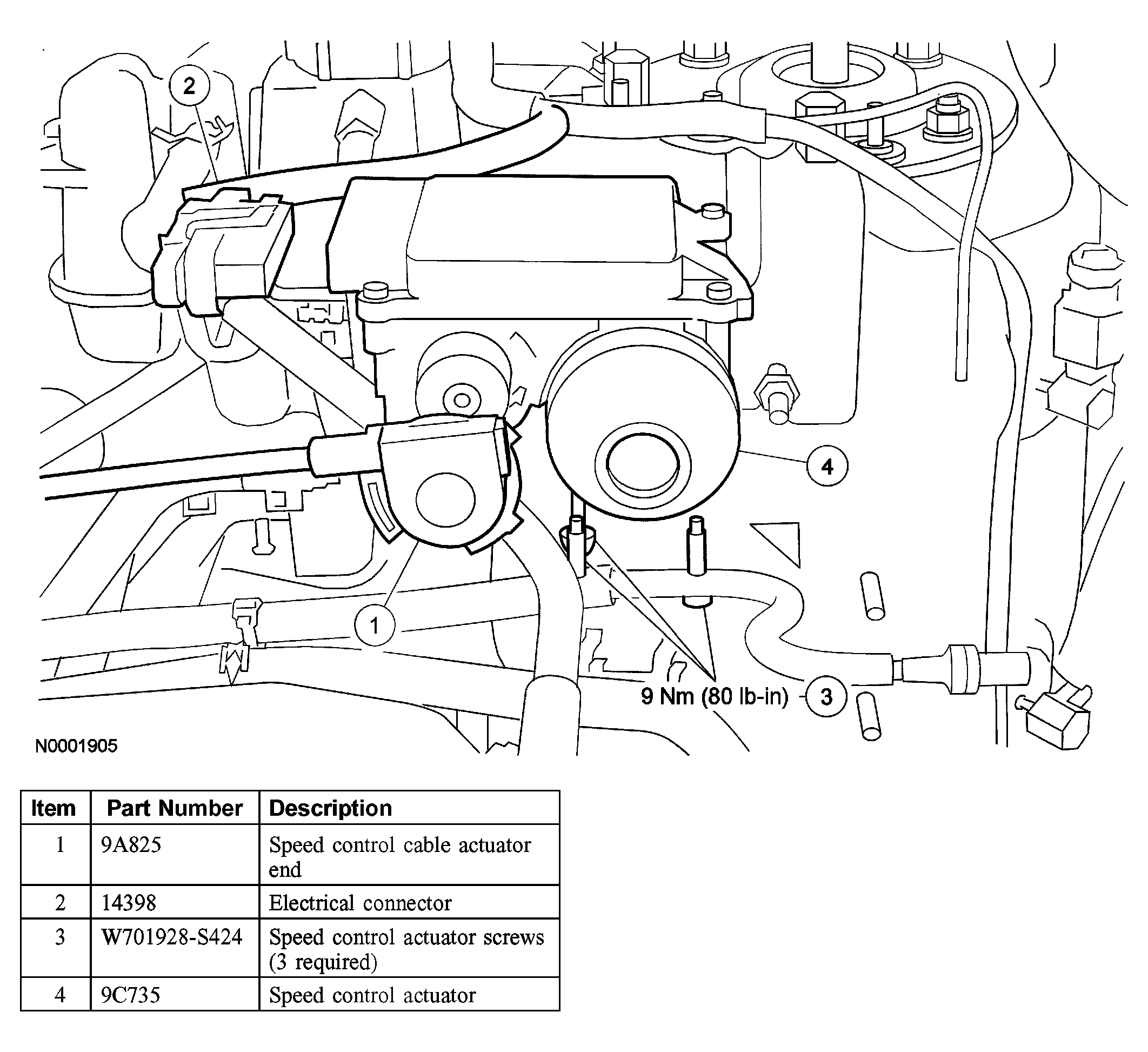

Fig 1: Identifying Components Of Speed Control Actuator

G03902163

Courtesy of FORD MOTOR CO.
