Home >> Ford >> 2005 >> Escape Base, 2.3 Z, FWD, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Removal And Installation >> Seat Track >> Notes

Seat Track: Notes

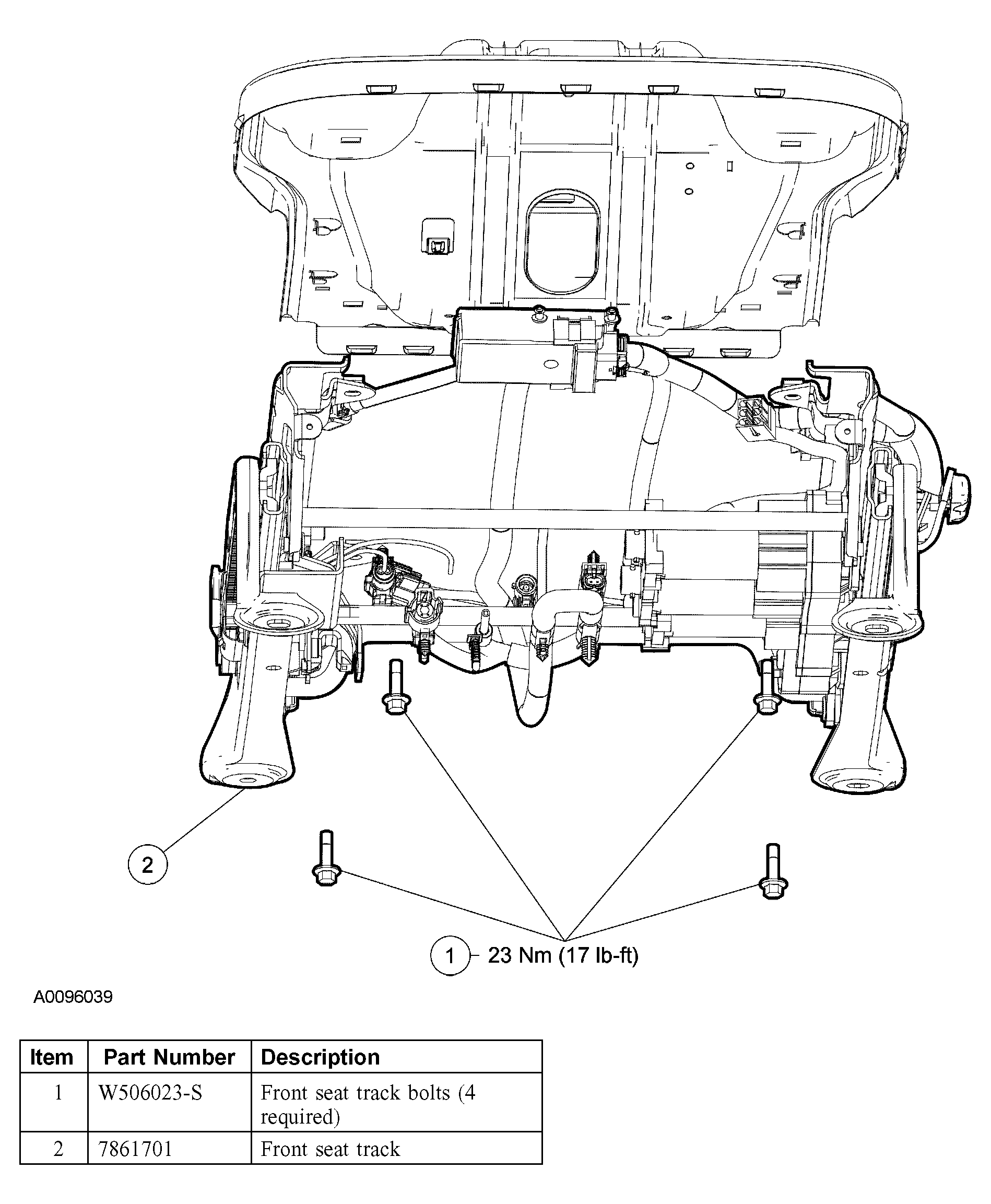

Fig 1: Seat Track With Torque Specifications

G03903286

Courtesy of FORD MOTOR CO.
