Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
  1. Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the bulkhead connectors from the smart junction box (SJB).

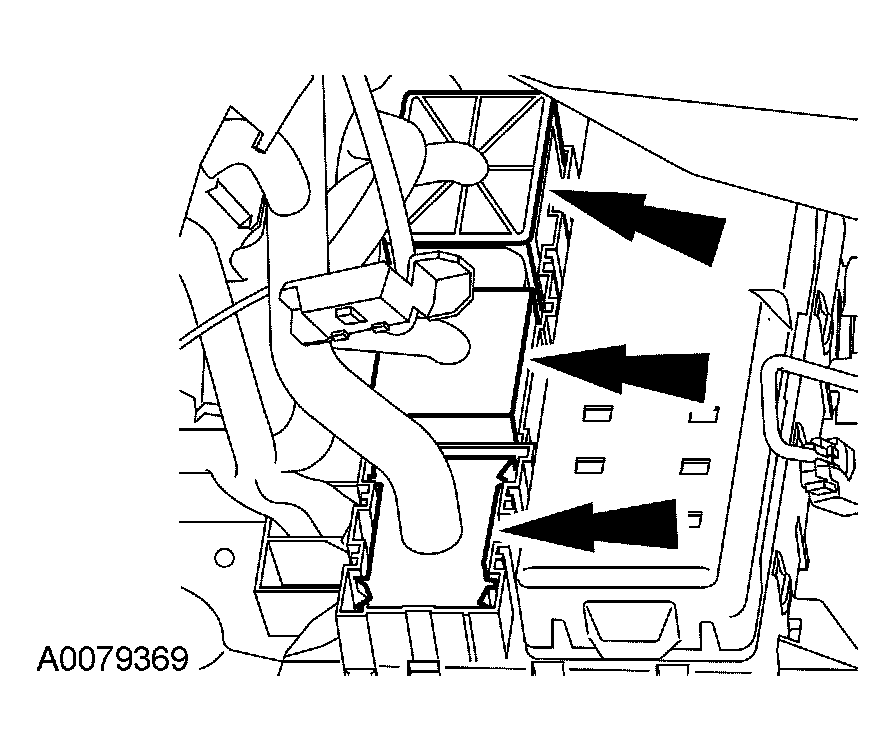

    Fig 1: Disconnecting Bulkhead Connectors From Smart Junction Box (SJB)
    G03958657Courtesy of FORD MOTOR CO.
  3. Disconnect the connectors from the bottom of the SJB.

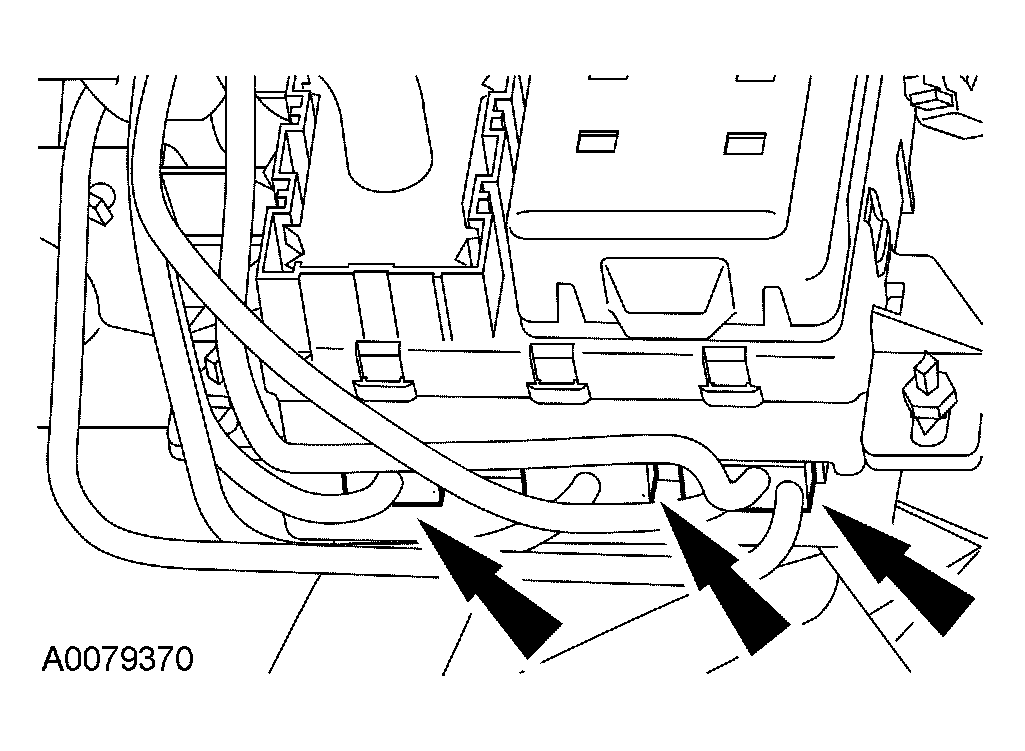

    Fig 2: Disconnecting Connectors From Bottom Of SJB
    G03958658Courtesy of FORD MOTOR CO.
  4. Remove the SJB.
    1. Remove the retaining nuts.
    2. Unclip and remove the SJB.

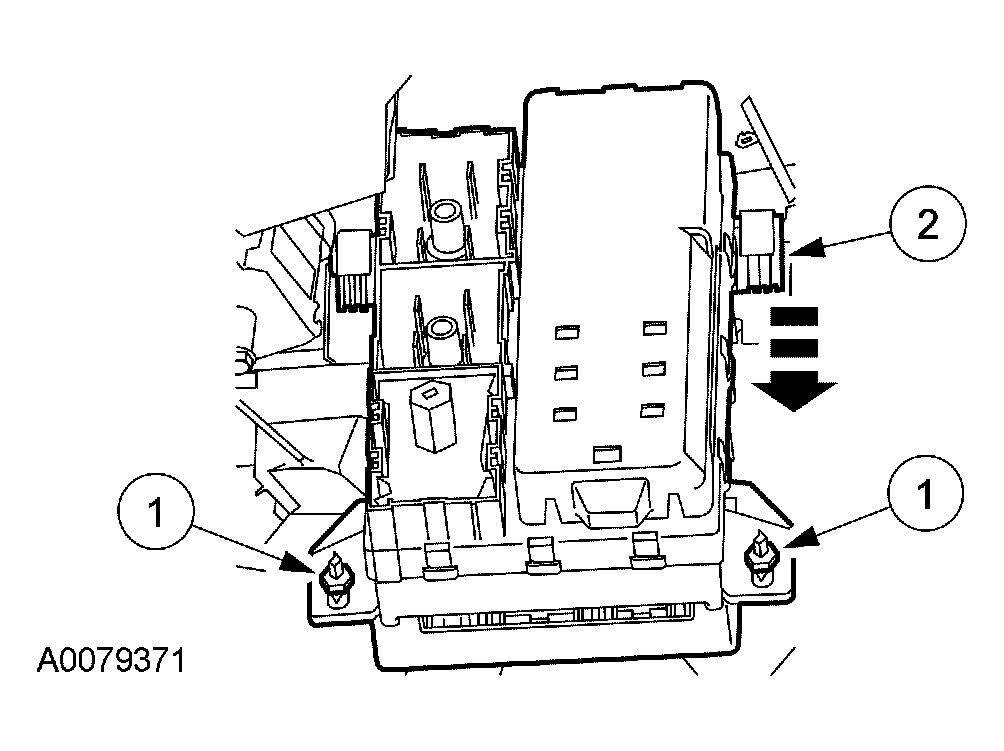

    Fig 3: Removing SJB
    G03958659Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
