Removal and Installation

  1. Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY - MANUAL A/C .
  2. Pull and remove the temperature control switch knob.
  3. Remove the temperature control switch.
    1. Remove the screw.
    2. Rotate and remove the temperature control switch.

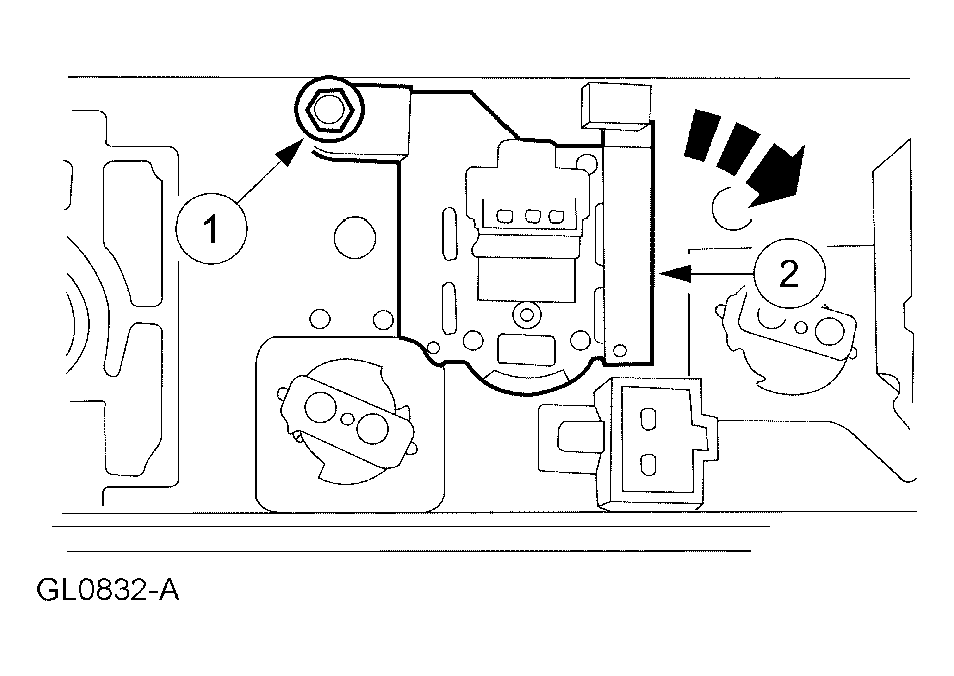

      Fig 1: Removing Screw And Temperature Control Switch
      G03879434Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
