Power Steering Fluid Cooler: Notes

Special Tool(s)

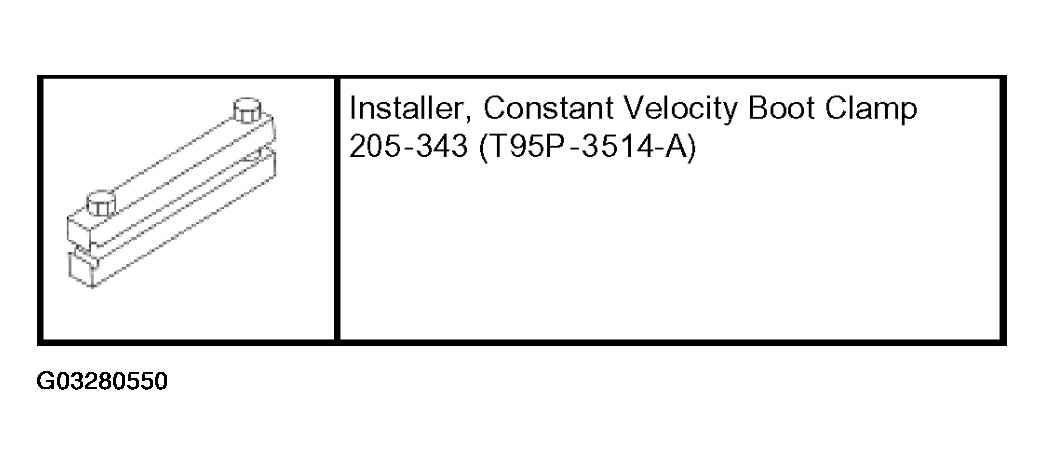

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Remove the air conditioning condenser. For additional information, refer to CLIMATE CONTROL SYSTEM .
2. Remove the parts in the order indicated in the following illustration and table.

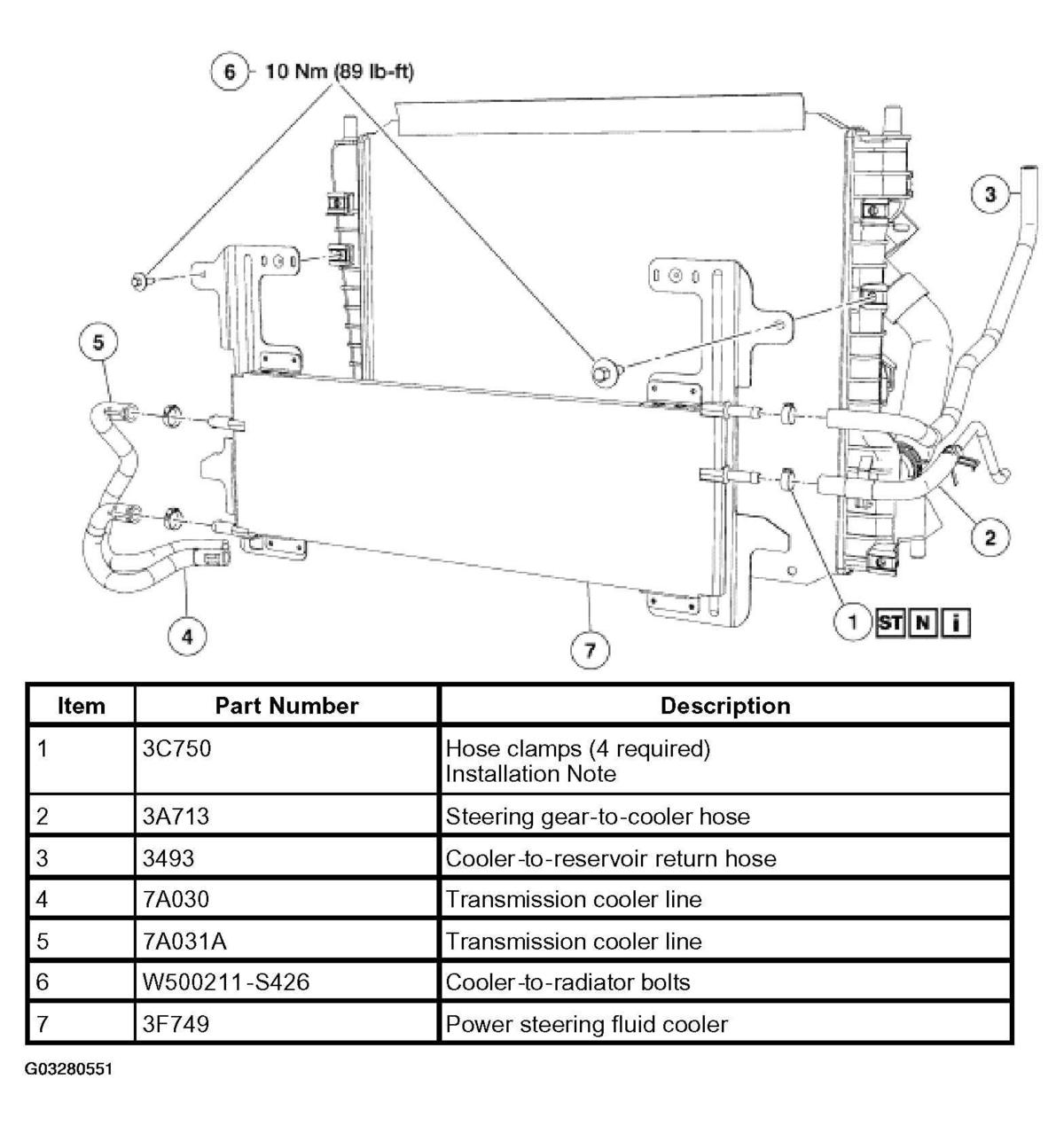

   Fig 2: Removing Power Steering Fluid Cooler Parts

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.
4. Fill and leak test the system. For additional information, refer to POWER STEERING SYSTEM FILLING .
