Plenum Chamber, Assembly And Components

  1. Remove the instrument panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order indicated in the following illustration and table.

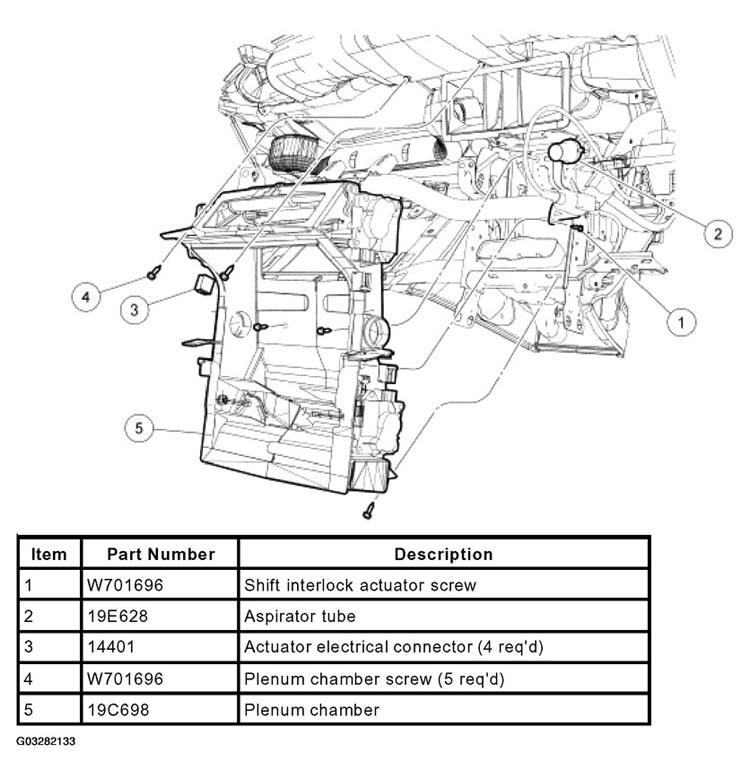

    Fig 1: Plenum Chamber, Assembly, And Components Removal Sequence
    G03282133Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
