Instrument Panel Registers: Notes

  1. Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the following steps:
    INSTRUMENT PANEL COMPONENT

    Component Steps
    Driver side register 1
    Passenger side register 2
    Center register 3-6

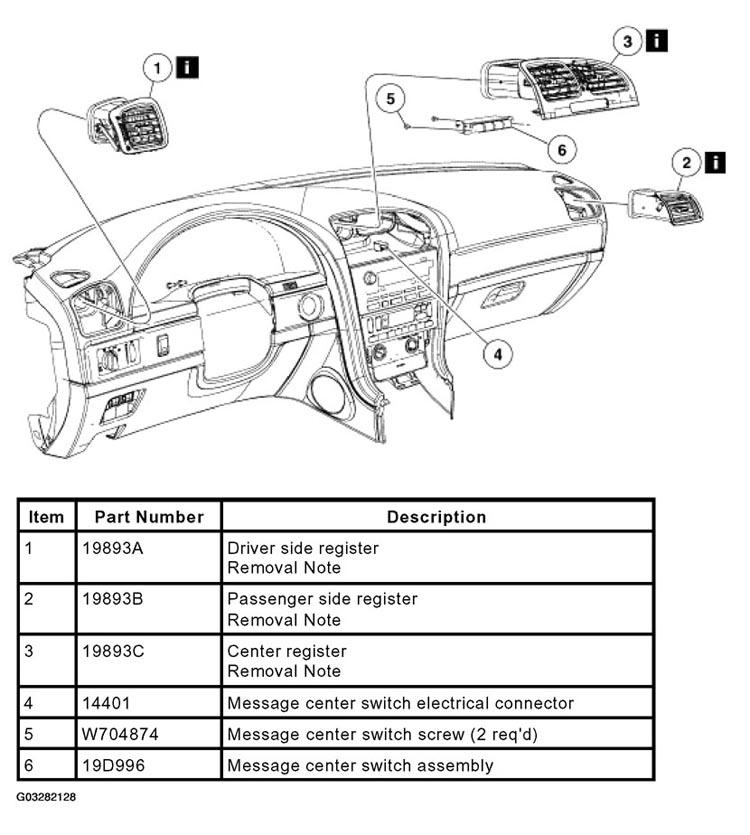

    2. Fig 1: Instrument Panel Registers Removal Sequence
    G03282128Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
