Manifold Gauge Set Connection

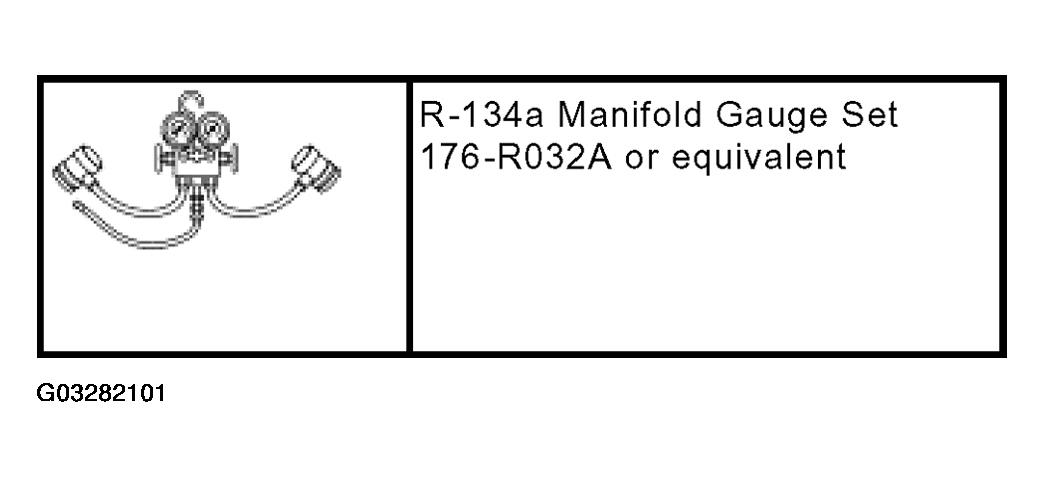

Special Tool(s)

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

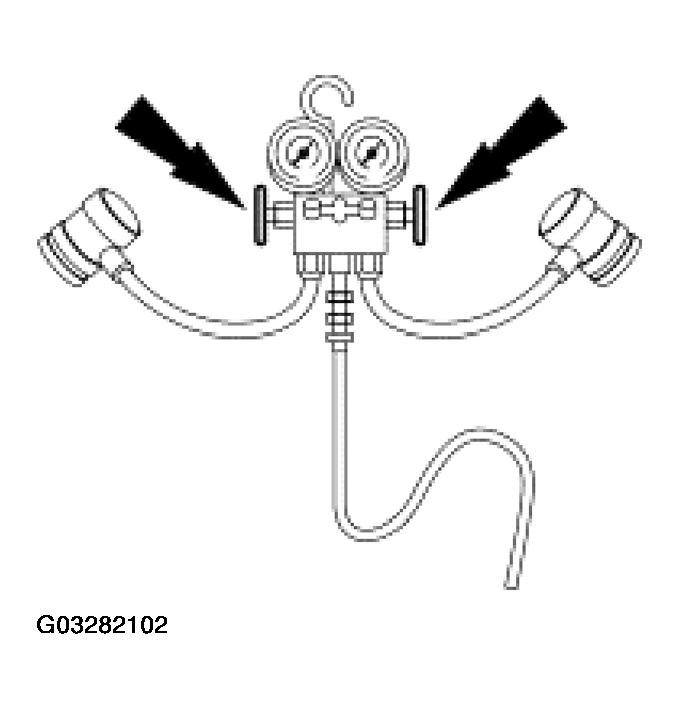

1. Turn both valves on the R-134a Manifold Gauge Set clockwise to close the low- and high-pressure hoses to the center manifold and center hose.
   Fig 2: Turning Both Valves On Manifold Gauge Set Clockwise To Close Low And High Pressure Hoses

   Courtesy of FORD MOTOR CO.

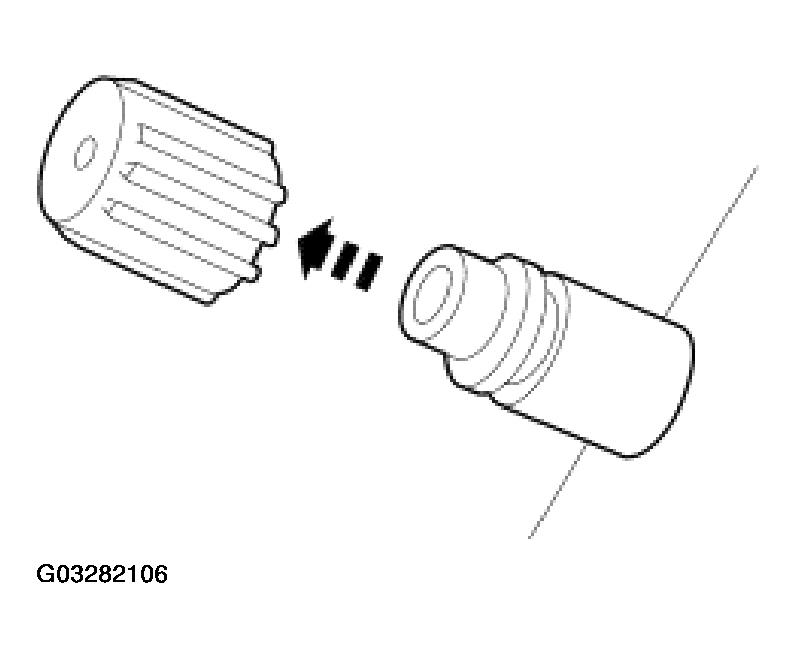

2. Remove the A/C charging valve cap from the high-pressure service gauge port valve.
   Fig 3: Removing A/C Charging Valve Cap From High-Pressure Service Gauge Port Valve

   Courtesy of FORD MOTOR CO.

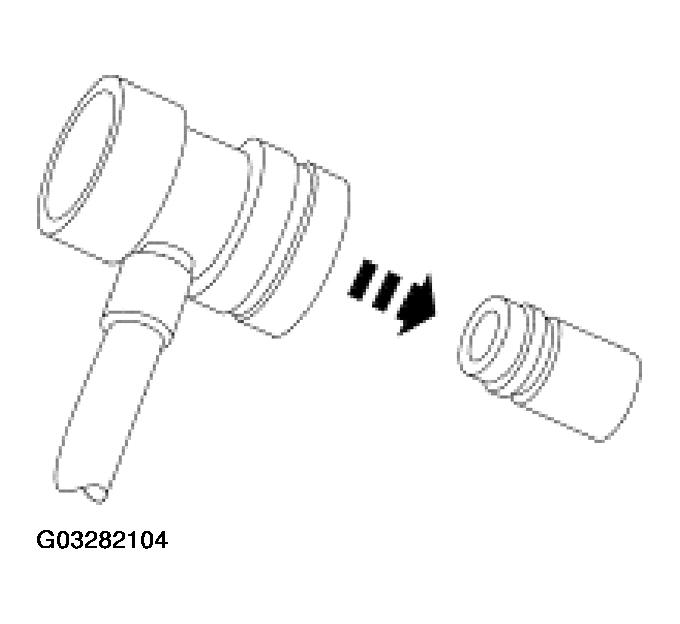

3. Connect the R-134a Manifold Gauge Set high-pressure hose and the R-134a high side quick disconnect to the high-pressure service gauge port valve.
   Fig 4: Connecting R-134A Manifold Gauge Set High-Pressure Hose

   Courtesy of FORD MOTOR CO.
4. Raise the vehicle. For additional information, refer to JACKING & HOISTING .

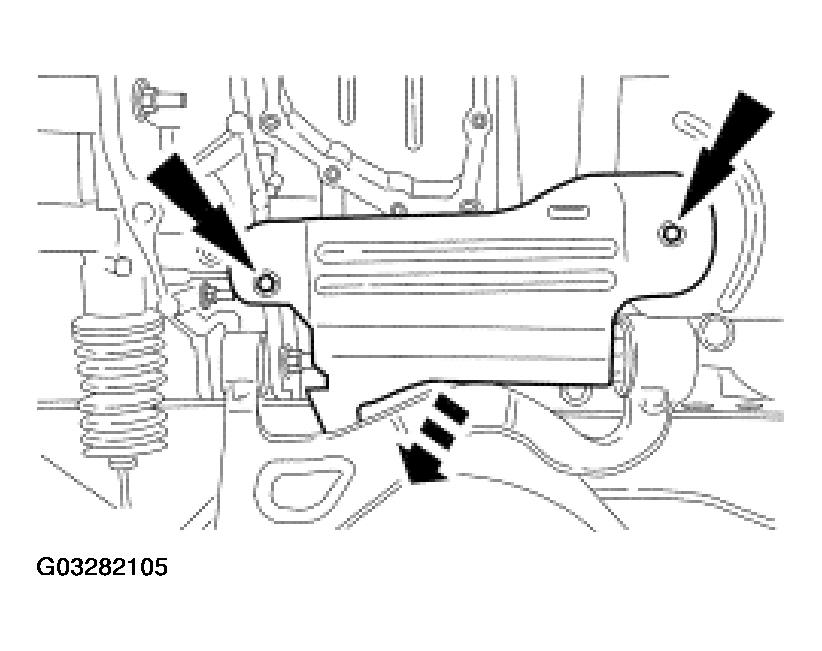

5. Remove the screws and the left sight shield.
   Fig 5: Removing Screws And Left Sight Shield

   Courtesy of FORD MOTOR CO.

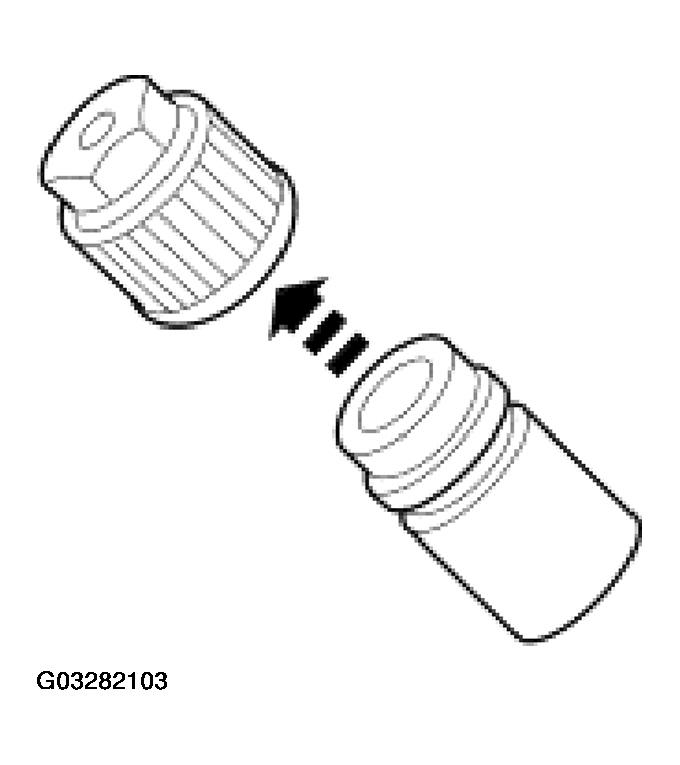

6. Remove the A/C charging valve cap (19D702) from the low-pressure service gauge port valve.
   Fig 6: Removing A/C Charging Valve Cap (19D702) From Low-Pressure Service Gauge Port Valve

   Courtesy of FORD MOTOR CO.
7. Connect the R-134a Manifold Gauge Set low-pressure hose and the R-134a low side quick disconnect to the low-pressure service gauge port valve.
   Fig 7: Connecting R-134A Manifold Gauge Set Low-Pressure Hose

   Courtesy of FORD MOTOR CO.
8. To disconnect the manifold and gauge set, reverse the connection procedure.
