Section 574 (Entertainment System)
>>
Diagnosis And Testing
>>
Entertainment System
>>
Connector Circuit Reference
>>
PCM C175b
PCM C175b
WARNING:
This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

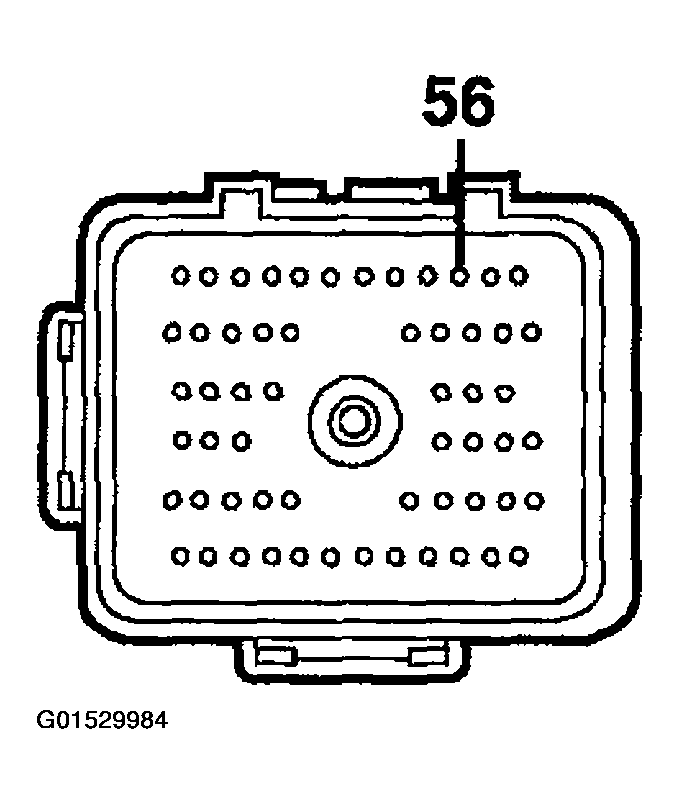

Fig 1: PCM C175B Connector Terminals
Courtesy of FORD MOTOR CO.

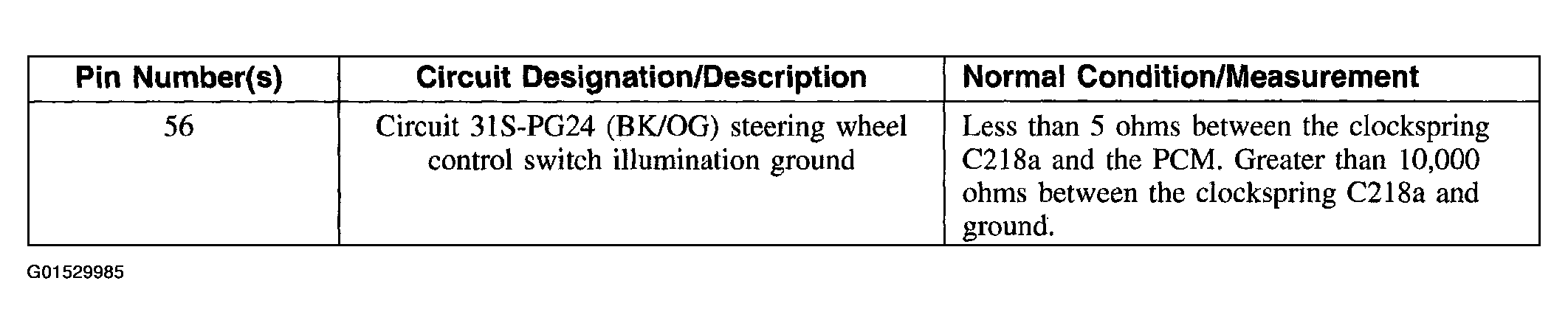

Fig 2: PCM C175B Connector Terminal Specification Chart
Courtesy of FORD MOTOR CO.
