Antenna Isolator Module C387

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Antenna Isolator Module C387 Connector Terminals
G01530004Courtesy of FORD MOTOR CO.

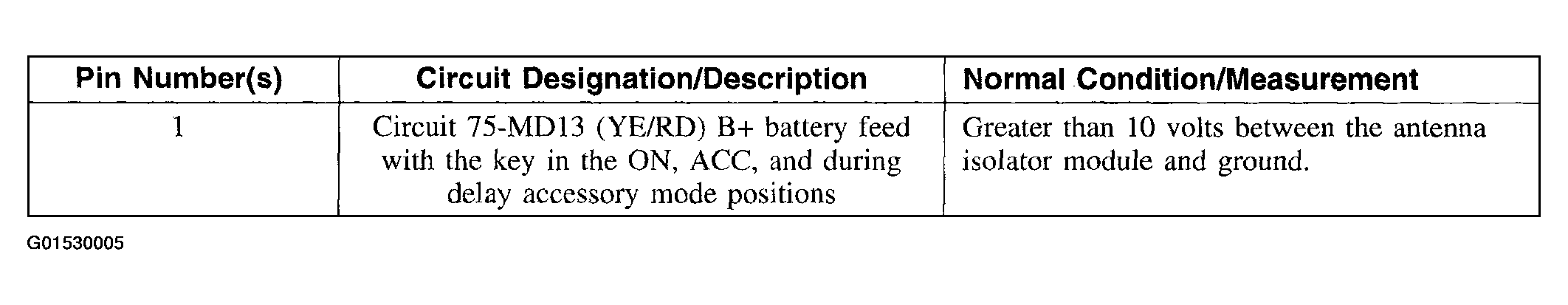

Fig 2: Antenna Isolator Module C387 Connector Terminal Specification Chart
G01530005Courtesy of FORD MOTOR CO.
