Blower Motor Speed Control

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the variable assist power steering module screw and position the module aside.
Remove the parts in the order indicated in the following illustration and table.

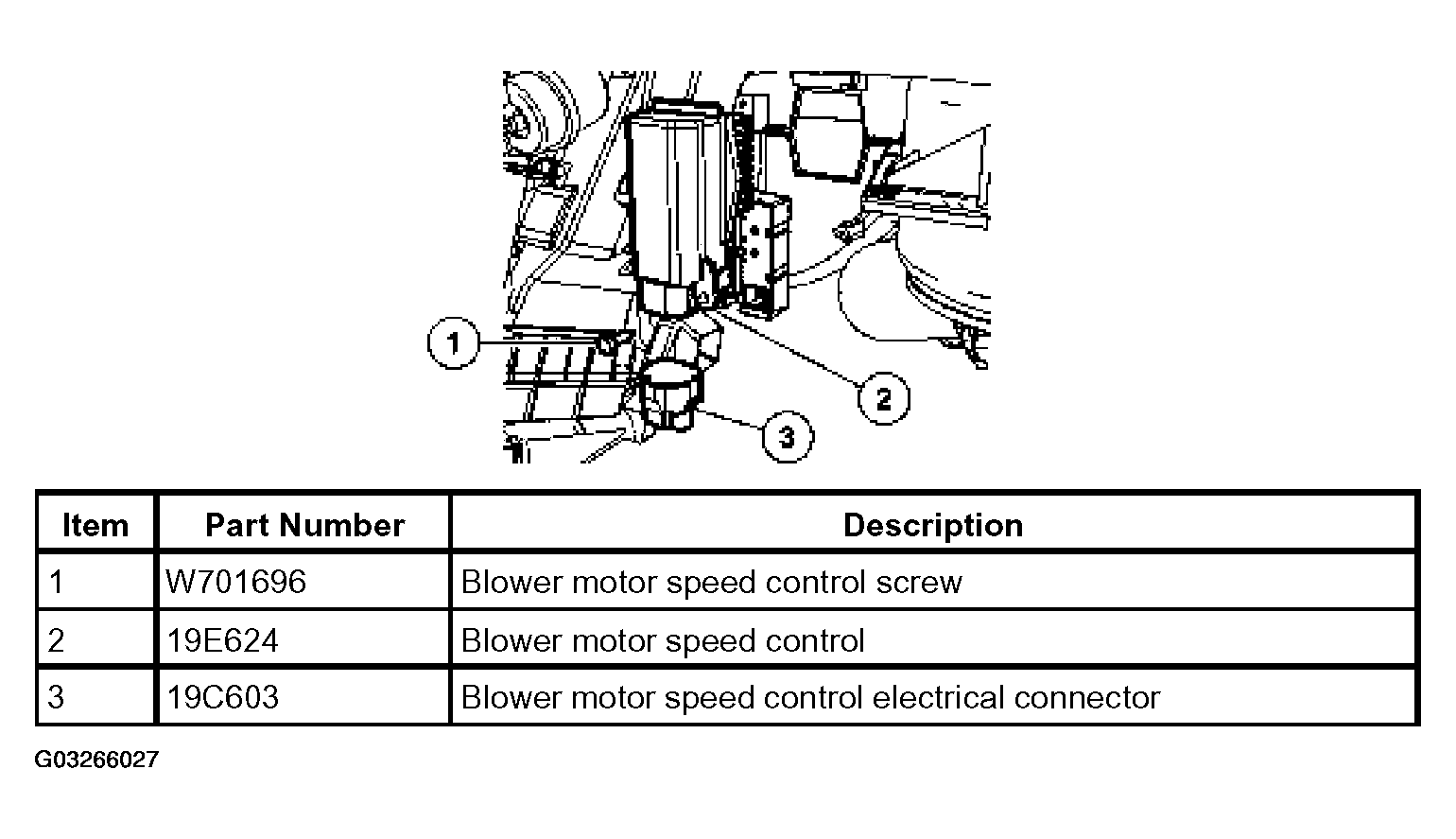

Fig 1: Identifying Removal Sequence Of Blower Motor Speed Control
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
