Air Distribution Ducts: Notes

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

AIR DISTRIBUTION DUCTS REMOVAL STEPS

Part	Steps
Floor ducts	1-4
Floor console ducts	5-8
Defrost duct	9-11
Air inlet duct	12-16
Center panel duct	17-18

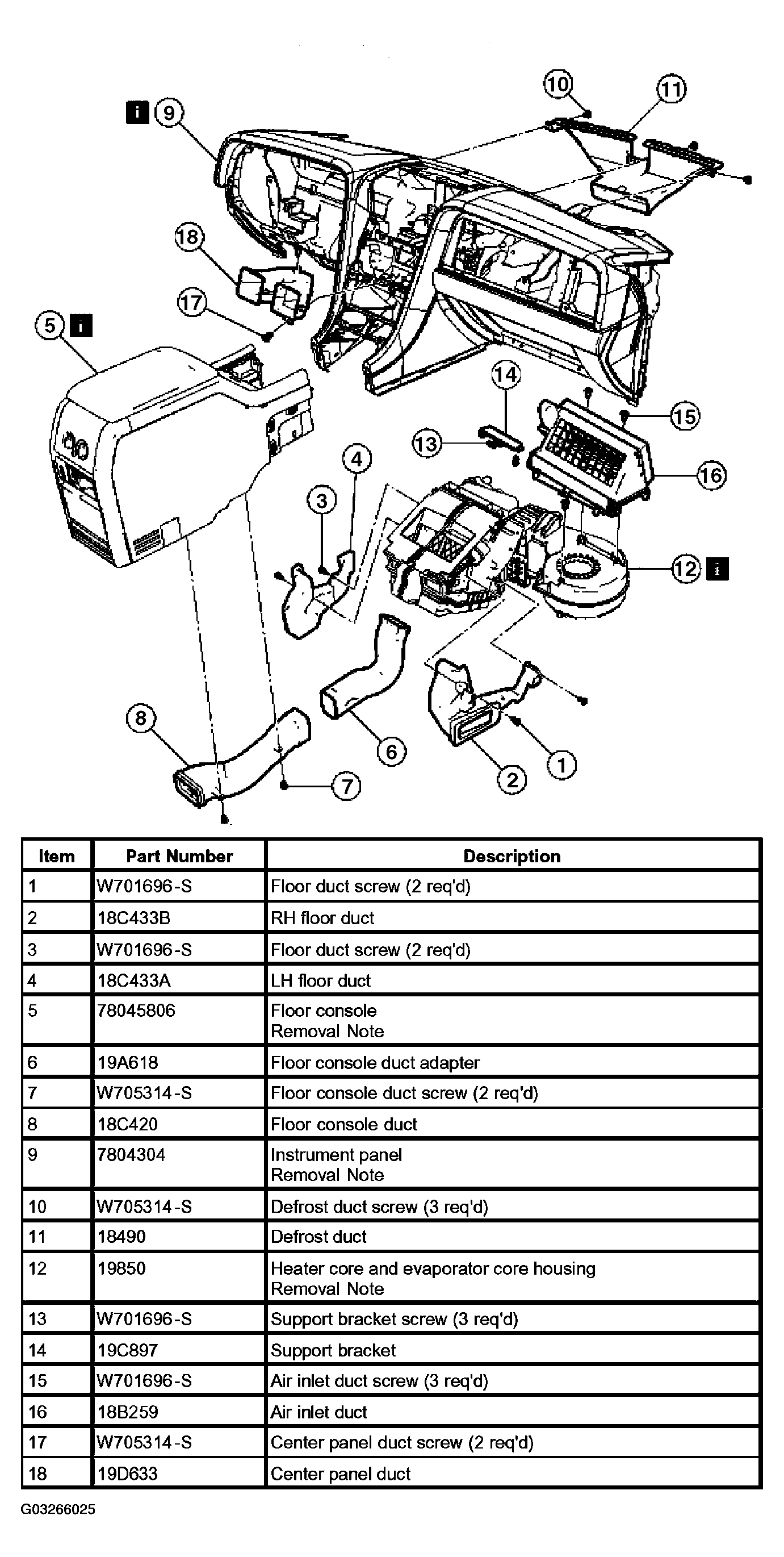

Fig 1: Removal Sequence Of Air Distribution Ducts

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
