A/C Pressure Sensor And Low Pressure Cutoff Switch

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

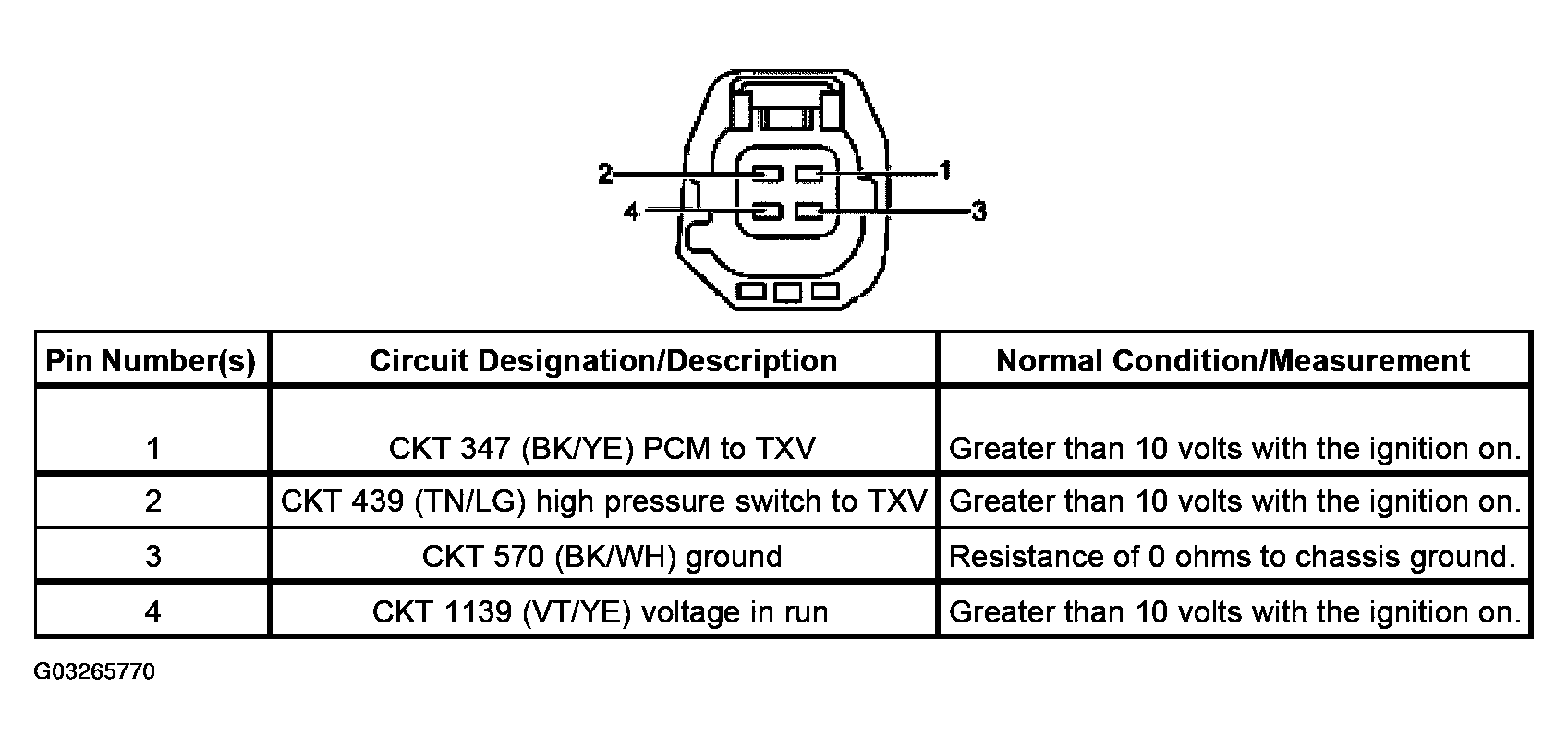

Fig 1: Identifying A/C Pressure Sensor And Low Pressure Cutoff Switch Connector Pins
G03265770Courtesy of FORD MOTOR CO.
