Auxiliary Coolant Pump Relay

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Auxiliary Coolant Pump Relay Identifying Connector Terminals
G01529554Courtesy of FORD MOTOR CO.

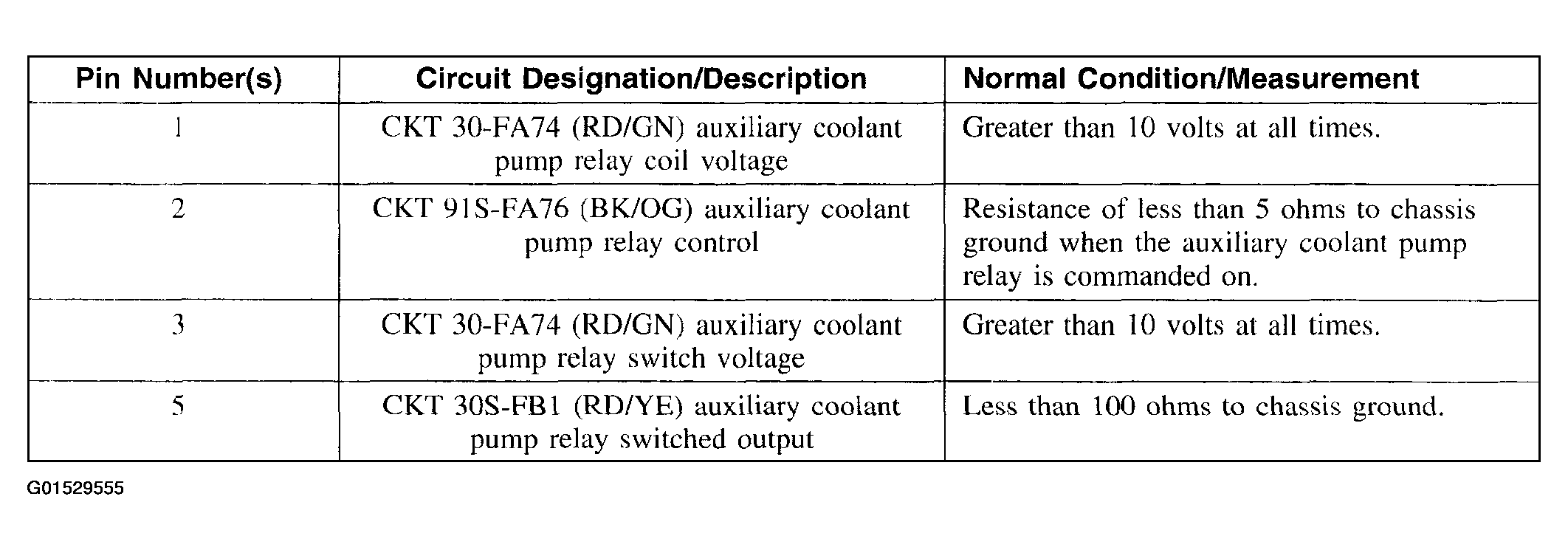

Fig 2: Auxiliary Coolant Pump Relay Circuit Description Chart
G01529555Courtesy of FORD MOTOR CO.
